Reina Capo Flat 800x400 Chrome

Reina Capo Flat

800 x 400mm / Chrome
£74.71 inc. VAT £120.49
Skip to product information
Reina Capo Flat 800x400 Chrome
  • Reina Capo Flat 800x400 Chrome

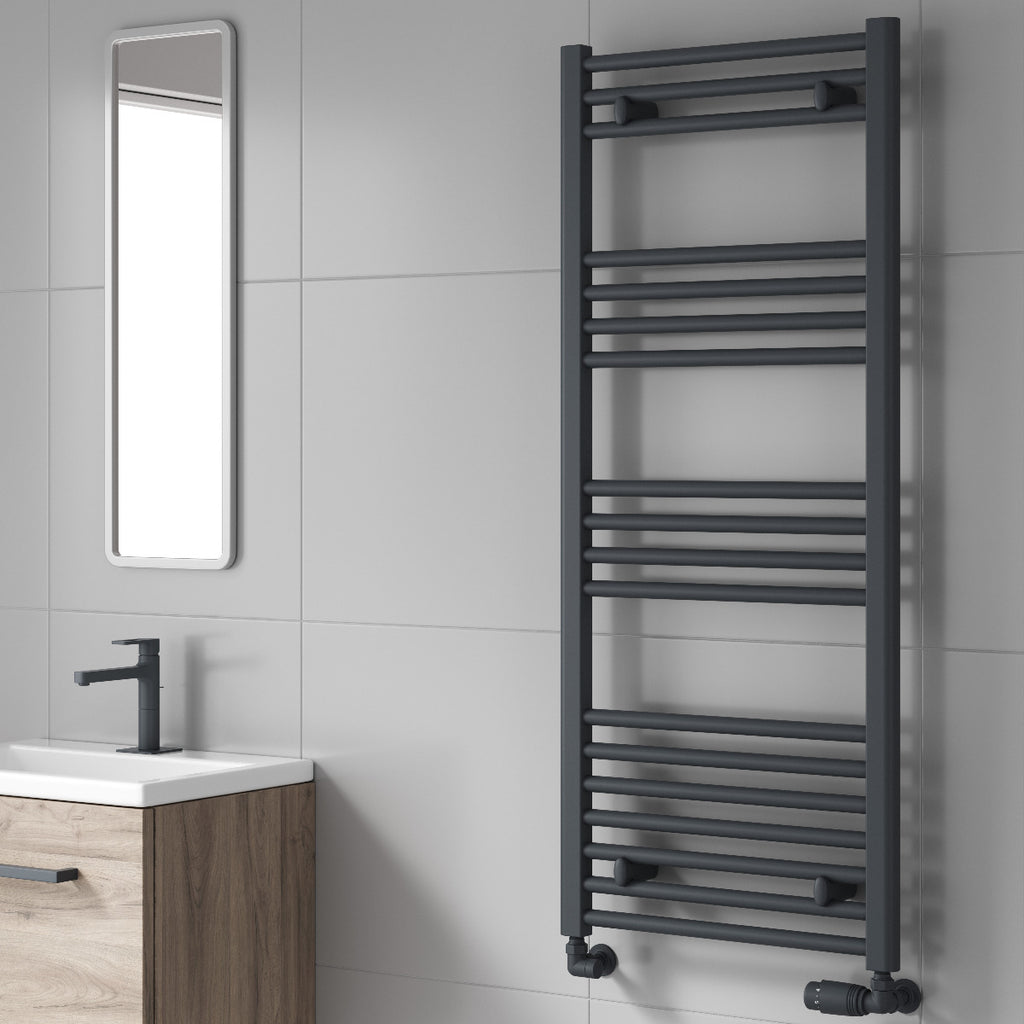

  • Reina Capo Flat radiator room setting

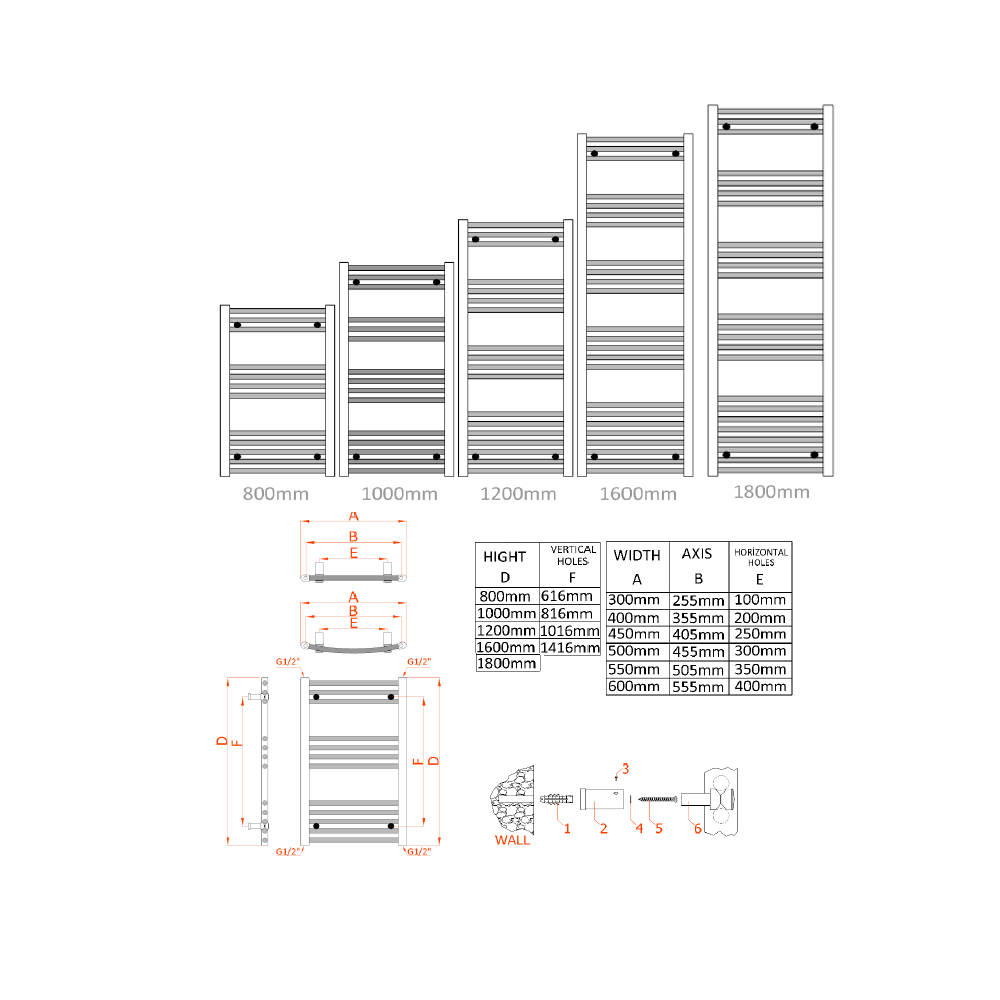

  • Reina Capo Flat technical drawing
Reina Capo Flat

Reina Capo Flat

£74.71 inc. VAT £120.49
Size
Finish
Complete your radiator Valves aren’t included with radiators. We’ve matched these to your finish.
Where do your pipes come from?

✓Free UK delivery on radiators ✓5-year guarantee ✓14-day returns

Not sure what output you need? Use our BTU calculator →

Description

The Reina Capo Flat is part of Reina's towel rail range, available in 15 sizes and 4 finishes. Choose your size and finish above to see the heat output and dimensions.

Key features

  • Available in Chrome, Anthracite, Black and White
  • Heat output from 172W to 747W (ΔT50)
  • Suitable for central heating, electric, dual fuel
  • Wall brackets and fixings included
  • 5-year manufacturer's guarantee
Specification

Chrome – 800 x 400mm

  • Size: 800 x 400mm (H x W)
  • Pipe centres: 355mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 172W / 585 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO0840CF

Anthracite – 800 x 400mm

  • Size: 800 x 400mm (H x W)
  • Pipe centres: 355mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 253W / 863 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO0840AF

Black – 800 x 400mm

  • Size: 800 x 400mm (H x W)
  • Pipe centres: 355mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 253W / 863 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO0840KF

White – 800 x 400mm

  • Size: 800 x 400mm (H x W)
  • Pipe centres: 355mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 253W / 863 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO0840WF

Chrome – 800 x 500mm

  • Size: 800 x 500mm (H x W)
  • Pipe centres: 455mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 203W / 692 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO0850CF

Anthracite – 800 x 500mm

  • Size: 800 x 500mm (H x W)
  • Pipe centres: 455mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 300W / 1024 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO0850AF

Black – 800 x 500mm

  • Size: 800 x 500mm (H x W)
  • Pipe centres: 455mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 300W / 1024 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO0850KF

White – 800 x 500mm

  • Size: 800 x 500mm (H x W)
  • Pipe centres: 455mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 300W / 1024 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO0850WF

Chrome – 800 x 600mm

  • Size: 800 x 600mm (H x W)
  • Pipe centres: 555mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 235W / 802 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO0860CF

Anthracite – 800 x 600mm

  • Size: 800 x 600mm (H x W)
  • Pipe centres: 555mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 350W / 1194 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO0860AF

Black – 800 x 600mm

  • Size: 800 x 600mm (H x W)
  • Pipe centres: 555mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 350W / 1194 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO0860KF

White – 800 x 600mm

  • Size: 800 x 600mm (H x W)
  • Pipe centres: 555mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 350W / 1194 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO0860WF

Chrome – 1000 x 400mm

  • Size: 1000 x 400mm (H x W)
  • Pipe centres: 355mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 220W / 750 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1040CF

Anthracite – 1000 x 400mm

  • Size: 1000 x 400mm (H x W)
  • Pipe centres: 355mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 325W / 1109 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1040AF

Black – 1000 x 400mm

  • Size: 1000 x 400mm (H x W)
  • Pipe centres: 355mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 325W / 1109 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1040KF

White – 1000 x 400mm

  • Size: 1000 x 400mm (H x W)
  • Pipe centres: 355mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 325W / 1109 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1040WF

Chrome – 1000 x 500mm

  • Size: 1000 x 500mm (H x W)
  • Pipe centres: 455mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 252W / 860 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1050CF

Anthracite – 1000 x 500mm

  • Size: 1000 x 500mm (H x W)
  • Pipe centres: 455mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 376W / 1281 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1050AF

Black – 1000 x 500mm

  • Size: 1000 x 500mm (H x W)
  • Pipe centres: 455mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 376W / 1281 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1050KF

White – 1000 x 500mm

  • Size: 1000 x 500mm (H x W)
  • Pipe centres: 455mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 376W / 1281 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1050WF

Chrome – 1000 x 600mm

  • Size: 1000 x 600mm (H x W)
  • Pipe centres: 555mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 285W / 971 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1060CF

Anthracite – 1000 x 600mm

  • Size: 1000 x 600mm (H x W)
  • Pipe centres: 555mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 423W / 1444 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1060AF

Black – 1000 x 600mm

  • Size: 1000 x 600mm (H x W)
  • Pipe centres: 555mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 423W / 1444 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1060KF

White – 1000 x 600mm

  • Size: 1000 x 600mm (H x W)
  • Pipe centres: 555mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 423W / 1444 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1060WF

Chrome – 1200 x 400mm

  • Size: 1200 x 400mm (H x W)
  • Pipe centres: 355mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 246W / 840 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1240CF

Anthracite – 1200 x 400mm

  • Size: 1200 x 400mm (H x W)
  • Pipe centres: 355mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 366W / 1248 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1240AF

Black – 1200 x 400mm

  • Size: 1200 x 400mm (H x W)
  • Pipe centres: 355mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 366W / 1248 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1240KF

White – 1200 x 400mm

  • Size: 1200 x 400mm (H x W)
  • Pipe centres: 355mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 366W / 1248 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1240WF

Chrome – 1200 x 500mm

  • Size: 1200 x 500mm (H x W)
  • Pipe centres: 455mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 291W / 991 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1250CF

Anthracite – 1200 x 500mm

  • Size: 1200 x 500mm (H x W)
  • Pipe centres: 455mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 435W / 1484 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1250AF

Black – 1200 x 500mm

  • Size: 1200 x 500mm (H x W)
  • Pipe centres: 455mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 435W / 1484 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1250KF

White – 1200 x 500mm

  • Size: 1200 x 500mm (H x W)
  • Pipe centres: 455mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 435W / 1484 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1250WF

Chrome – 1200 x 600mm

  • Size: 1200 x 600mm (H x W)
  • Pipe centres: 555mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 337W / 1149 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1260CF

Anthracite – 1200 x 600mm

  • Size: 1200 x 600mm (H x W)
  • Pipe centres: 555mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 499W / 1703 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1260AF

Black – 1200 x 600mm

  • Size: 1200 x 600mm (H x W)
  • Pipe centres: 555mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 499W / 1703 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1260KF

White – 1200 x 600mm

  • Size: 1200 x 600mm (H x W)
  • Pipe centres: 555mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 499W / 1703 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1260WF

Chrome – 1600 x 400mm

  • Size: 1600 x 400mm (H x W)
  • Pipe centres: 355mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 326W / 1110 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1640CF

Anthracite – 1600 x 400mm

  • Size: 1600 x 400mm (H x W)
  • Pipe centres: 355mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 485W / 1654 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1640AF

Black – 1600 x 400mm

  • Size: 1600 x 400mm (H x W)
  • Pipe centres: 355mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 485W / 1654 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1640KF

White – 1600 x 400mm

  • Size: 1600 x 400mm (H x W)
  • Pipe centres: 355mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 485W / 1654 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1640WF

Chrome – 1600 x 500mm

  • Size: 1600 x 500mm (H x W)
  • Pipe centres: 455mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 384W / 1309 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1650CF

Anthracite – 1600 x 500mm

  • Size: 1600 x 500mm (H x W)
  • Pipe centres: 455mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 573W / 1953 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1650AF

Black – 1600 x 500mm

  • Size: 1600 x 500mm (H x W)
  • Pipe centres: 455mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 573W / 1953 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1650KF

White – 1600 x 500mm

  • Size: 1600 x 500mm (H x W)
  • Pipe centres: 455mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 573W / 1953 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1650WF

Chrome – 1600 x 600mm

  • Size: 1600 x 600mm (H x W)
  • Pipe centres: 555mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 445W / 1518 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1660CF

Anthracite – 1600 x 600mm

  • Size: 1600 x 600mm (H x W)
  • Pipe centres: 555mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 663W / 2262 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1660AF

Black – 1600 x 600mm

  • Size: 1600 x 600mm (H x W)
  • Pipe centres: 555mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 663W / 2262 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1660KF

White – 1600 x 600mm

  • Size: 1600 x 600mm (H x W)
  • Pipe centres: 555mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 663W / 2262 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1660WF

Chrome – 1800 x 400mm

  • Size: 1800 x 400mm (H x W)
  • Pipe centres: 355mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 344W / 1173 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1840CF

Anthracite – 1800 x 400mm

  • Size: 1800 x 400mm (H x W)
  • Pipe centres: 355mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 428W / 1459 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1840AF

Black – 1800 x 400mm

  • Size: 1800 x 400mm (H x W)
  • Pipe centres: 355mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 428W / 1459 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1840KF

White – 1800 x 400mm

  • Size: 1800 x 400mm (H x W)
  • Pipe centres: 355mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 428W / 1459 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1840WF

Chrome – 1800 x 500mm

  • Size: 1800 x 500mm (H x W)
  • Pipe centres: 455mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 421W / 1434 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1850CF

Anthracite – 1800 x 500mm

  • Size: 1800 x 500mm (H x W)
  • Pipe centres: 455mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 635W / 2164 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1850AF

Black – 1800 x 500mm

  • Size: 1800 x 500mm (H x W)
  • Pipe centres: 455mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 635W / 2164 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1850KF

White – 1800 x 500mm

  • Size: 1800 x 500mm (H x W)
  • Pipe centres: 455mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 635W / 2164 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1850WF

Chrome – 1800 x 600mm

  • Size: 1800 x 600mm (H x W)
  • Pipe centres: 555mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 683W / 2330 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1860CF

Anthracite – 1800 x 600mm

  • Size: 1800 x 600mm (H x W)
  • Pipe centres: 555mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 747W / 2456 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1860AF

Black – 1800 x 600mm

  • Size: 1800 x 600mm (H x W)
  • Pipe centres: 555mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 747W / 2456 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1860KF

White – 1800 x 600mm

  • Size: 1800 x 600mm (H x W)
  • Pipe centres: 555mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 747W / 2456 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: CPO1860WF

For pipe centres including valves, add approximately 90mm.
What’s included & guarantee

In the box

  • Reina Capo Flat radiator
  • Wall brackets and fixings

Valves are sold separately.

Guarantee

5-year manufacturer's guarantee against manufacturing defects.
Downloads

Installation guide (PDF)

Technical drawing
Delivery & Returns

Delivery: Free UK delivery on radiators and towel rails, usually within 1–3 working days. Valves and accessories are free with a radiator, or £6 delivery when ordered on their own. Radiators come by two-person courier (usually DPD), who will call or text you to arrange delivery, so please give a mobile number you'll answer.

Returns: Change your mind within 14 days of delivery. Items must be unused and in their original packaging. We arrange collection by courier, and a collection charge is deducted from your refund: £42 for the first radiator, £6 for each additional radiator and £12 for valves and accessories. Custom RAL colours and made-to-order items can’t be returned unless faulty.

Damaged or faulty items are put right at no cost to you. Read our full delivery and returns policy.

You may also like
