Reina Casina Horizontal Double 600x470 White

Reina Casina Horizontal

Double / 600 x 470mm / White
£210.92 inc. VAT £340.20
Skip to product information
Reina Casina Horizontal Double 600x470 White

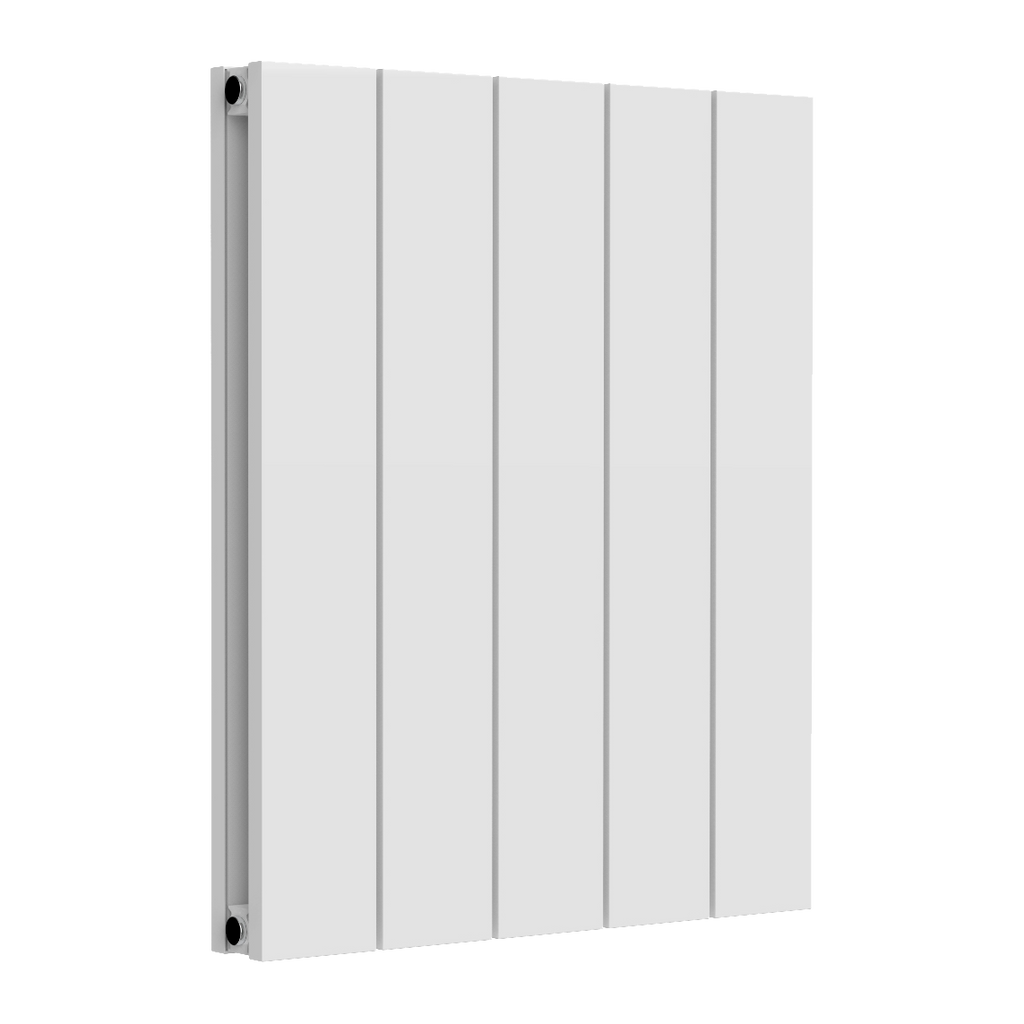

  • Reina Casina Horizontal Double 600x470 White

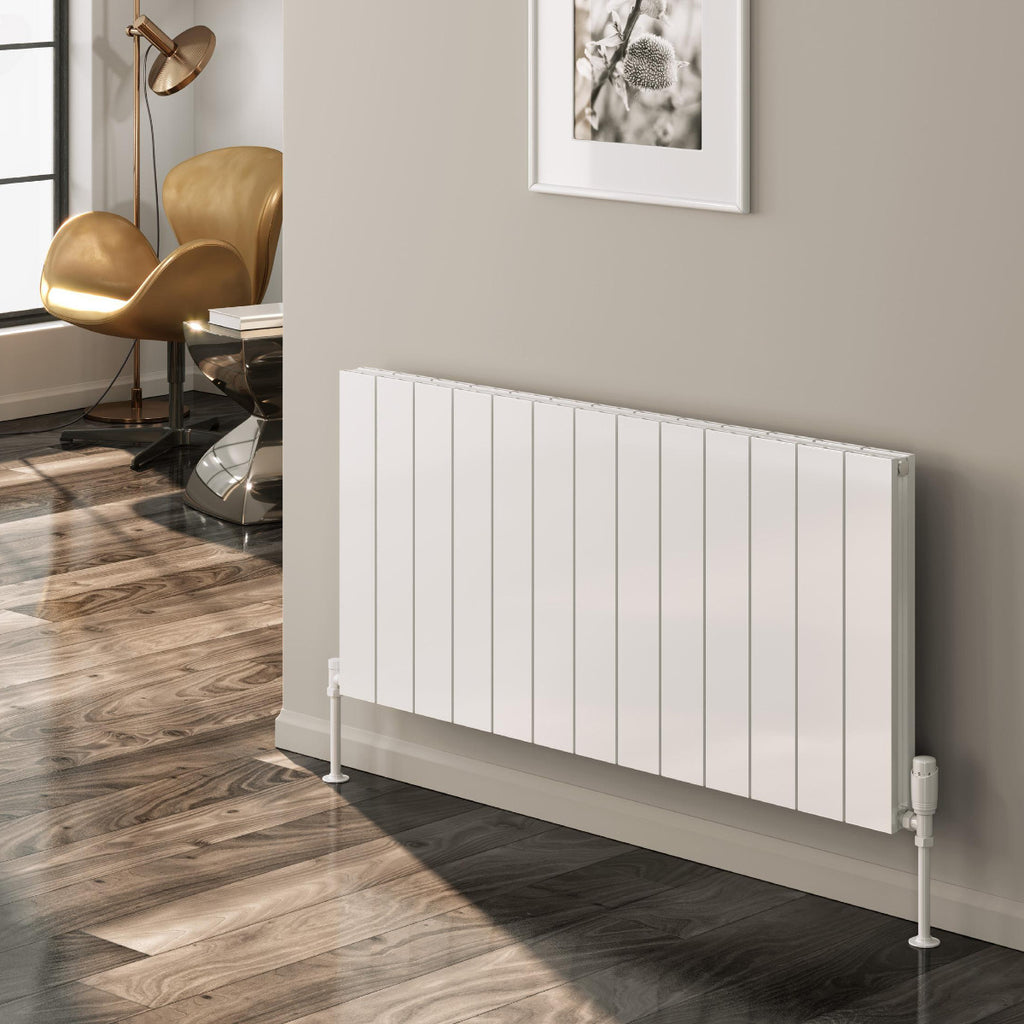

  • Reina Casina Horizontal radiator room setting

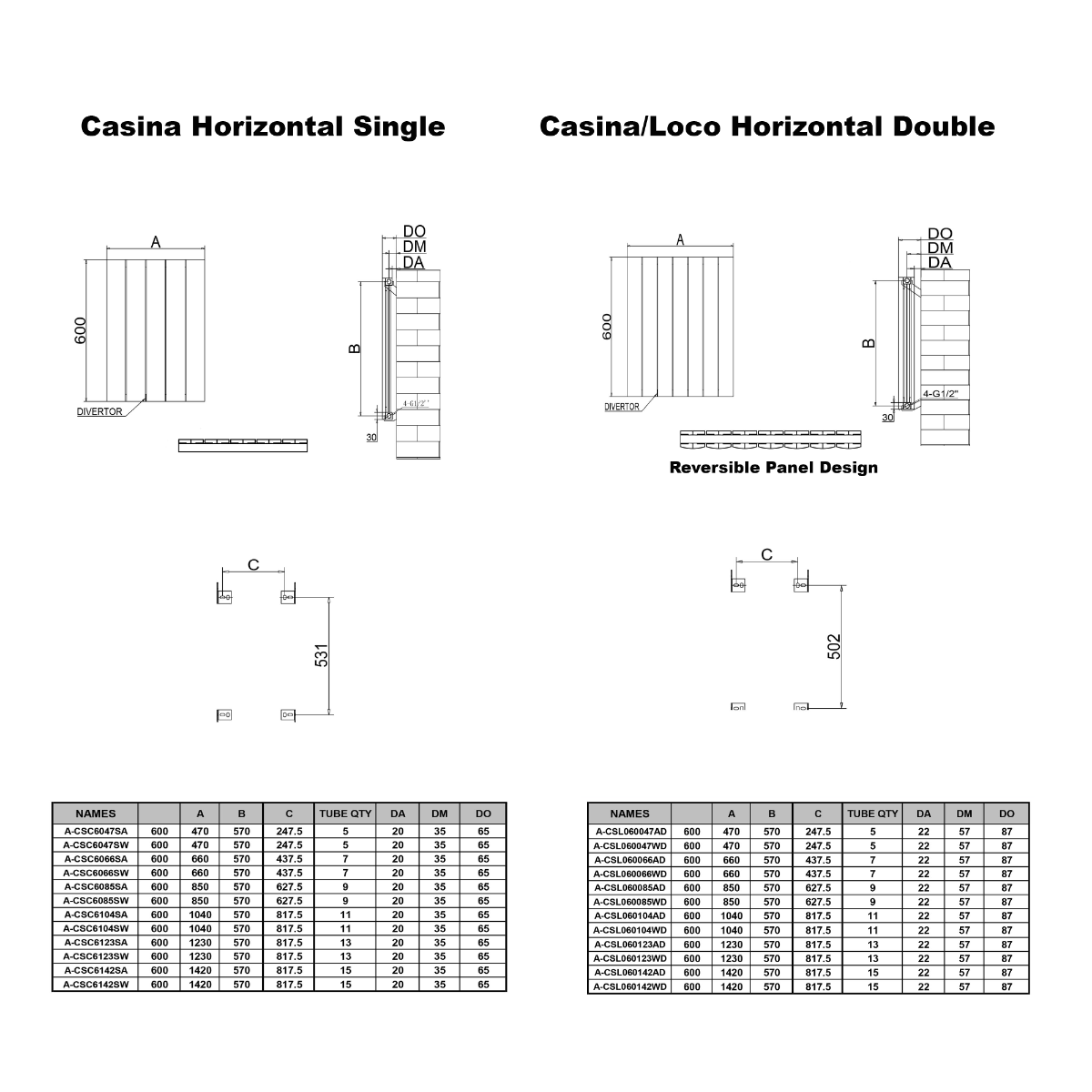

  • Reina Casina Horizontal technical drawing
Reina Casina Horizontal

Reina Casina Horizontal

£210.92 inc. VAT £340.20
Type
Size
Finish
Complete your radiator Valves aren’t included with radiators. We’ve matched these to your finish.
Where do your pipes come from?

✓Free UK delivery on radiators ✓5-year guarantee ✓14-day returns

Not sure what output you need? Use our BTU calculator →

Description

The Reina Casina Horizontal is part of Reina's aluminium radiator range, available in 6 sizes and 2 finishes. Choose your size and finish above to see the heat output and dimensions.

Key features

  • Aluminium construction
  • Available in White and Anthracite
  • Heat output from 361W to 1548W (ΔT50)
  • Suitable for central heating, electric, dual fuel
  • Wall brackets and fixings included
  • 5-year manufacturer's guarantee
Specification

White – 600 x 470mm

  • Size: 600 x 470mm (H x W)
  • Pipe centres: 470mm
  • Wall to pipe centres: 55mm
  • Wall distance: 86mm
  • Heat output: 516W / 1759 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-CSN060047WD

Anthracite – 600 x 470mm

  • Size: 600 x 470mm (H x W)
  • Pipe centres: 470mm
  • Wall to pipe centres: 55mm
  • Wall distance: 86mm
  • Heat output: 516W / 1759 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-CSN060047AD

White – 600 x 660mm

  • Size: 600 x 660mm (H x W)
  • Pipe centres: 660mm
  • Wall to pipe centres: 55mm
  • Wall distance: 86mm
  • Heat output: 722W / 2463 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-CSN060066WD

Anthracite – 600 x 660mm

  • Size: 600 x 660mm (H x W)
  • Pipe centres: 660mm
  • Wall to pipe centres: 55mm
  • Wall distance: 86mm
  • Heat output: 722W / 2463 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-CSN060066AD

White – 600 x 850mm

  • Size: 600 x 850mm (H x W)
  • Pipe centres: 850mm
  • Wall to pipe centres: 55mm
  • Wall distance: 86mm
  • Heat output: 929W / 3166 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-CSN060085WD

Anthracite – 600 x 850mm

  • Size: 600 x 850mm (H x W)
  • Pipe centres: 850mm
  • Wall to pipe centres: 55mm
  • Wall distance: 86mm
  • Heat output: 979W / 3166 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-CSN060085AD

White – 600 x 1040mm

  • Size: 600 x 1040mm (H x W)
  • Pipe centres: 1040mm
  • Wall to pipe centres: 55mm
  • Wall distance: 86mm
  • Heat output: 1135W / 3870 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-CSN060104WD

Anthracite – 600 x 1040mm

  • Size: 600 x 1040mm (H x W)
  • Pipe centres: 1040mm
  • Wall to pipe centres: 55mm
  • Wall distance: 86mm
  • Heat output: 1135W / 3870 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-CSN060104AD

White – 600 x 1230mm

  • Size: 600 x 1230mm (H x W)
  • Pipe centres: 1230mm
  • Wall to pipe centres: 55mm
  • Wall distance: 86mm
  • Heat output: 1341W / 4574 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-CSN060123WD

Anthracite – 600 x 1230mm

  • Size: 600 x 1230mm (H x W)
  • Pipe centres: 1230mm
  • Wall to pipe centres: 55mm
  • Wall distance: 86mm
  • Heat output: 1341W / 4574 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-CSN060123AD

White – 600 x 1420mm

  • Size: 600 x 1420mm (H x W)
  • Pipe centres: 1420mm
  • Wall to pipe centres: 55mm
  • Wall distance: 86mm
  • Heat output: 1548W / 5278 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-CSN060142WD

Anthracite – 600 x 1420mm

  • Size: 600 x 1420mm (H x W)
  • Pipe centres: 1420mm
  • Wall to pipe centres: 55mm
  • Wall distance: 86mm
  • Heat output: 1548W / 5278 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-CSN060142AD

White – 600 x 470mm

  • Size: 600 x 470mm (H x W)
  • Pipe centres: 470mm
  • Wall to pipe centres: 35mm
  • Wall distance: 65mm
  • Heat output: 361W / 1230 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-CSC6047SW

Anthracite – 600 x 470mm

  • Size: 600 x 470mm (H x W)
  • Pipe centres: 470mm
  • Wall to pipe centres: 35mm
  • Wall distance: 65mm
  • Heat output: 361W / 1230 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-CSC6047SA

White – 600 x 660mm

  • Size: 600 x 660mm (H x W)
  • Pipe centres: 660mm
  • Wall to pipe centres: 35mm
  • Wall distance: 65mm
  • Heat output: 505W / 1723 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-CSC6066SW

Anthracite – 600 x 660mm

  • Size: 600 x 660mm (H x W)
  • Pipe centres: 660mm
  • Wall to pipe centres: 35mm
  • Wall distance: 65mm
  • Heat output: 505W / 1723 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-CSC6066SA

White – 600 x 850mm

  • Size: 600 x 850mm (H x W)
  • Pipe centres: 850mm
  • Wall to pipe centres: 35mm
  • Wall distance: 65mm
  • Heat output: 649W / 2214 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-CSC6085SW

Anthracite – 600 x 850mm

  • Size: 600 x 850mm (H x W)
  • Pipe centres: 850mm
  • Wall to pipe centres: 35mm
  • Wall distance: 65mm
  • Heat output: 649W / 2214 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-CSC6085SA

White – 600 x 1040mm

  • Size: 600 x 1040mm (H x W)
  • Pipe centres: 1040mm
  • Wall to pipe centres: 35mm
  • Wall distance: 65mm
  • Heat output: 794W / 2707 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-CSC6104SW

Anthracite – 600 x 1040mm

  • Size: 600 x 1040mm (H x W)
  • Pipe centres: 1040mm
  • Wall to pipe centres: 35mm
  • Wall distance: 65mm
  • Heat output: 794W / 2703 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-CSC6104SA

White – 600 x 1230mm

  • Size: 600 x 1230mm (H x W)
  • Pipe centres: 1230mm
  • Wall to pipe centres: 35mm
  • Wall distance: 65mm
  • Heat output: 938W / 3198 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-CSC6123SW

Anthracite – 600 x 1230mm

  • Size: 600 x 1230mm (H x W)
  • Pipe centres: 1230mm
  • Wall to pipe centres: 35mm
  • Wall distance: 65mm
  • Heat output: 938W / 3198 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-CSC6123SA

White – 600 x 1420mm

  • Size: 600 x 1420mm (H x W)
  • Pipe centres: 1420mm
  • Wall to pipe centres: 35mm
  • Wall distance: 65mm
  • Heat output: 1083W / 3691 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-CSC6142SW

Anthracite – 600 x 1420mm

  • Size: 600 x 1420mm (H x W)
  • Pipe centres: 1420mm
  • Wall to pipe centres: 35mm
  • Wall distance: 65mm
  • Heat output: 1083W / 3691 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-CSC6142SA

For pipe centres including valves, add approximately 90mm.
What’s included & guarantee

In the box

  • Reina Casina Horizontal radiator
  • Wall brackets and fixings

Valves are sold separately.

Guarantee

5-year manufacturer's guarantee against manufacturing defects.
Downloads

Installation guide (PDF)

Technical drawing
Delivery & Returns

Delivery: Free UK delivery on radiators and towel rails, usually within 1–3 working days. Valves and accessories are free with a radiator, or £6 delivery when ordered on their own. Radiators come by two-person courier (usually DPD), who will call or text you to arrange delivery, so please give a mobile number you'll answer.

Returns: Change your mind within 14 days of delivery. Items must be unused and in their original packaging. We arrange collection by courier, and a collection charge is deducted from your refund: £42 for the first radiator, £6 for each additional radiator and £12 for valves and accessories. Custom RAL colours and made-to-order items can’t be returned unless faulty.

Damaged or faulty items are put right at no cost to you. Read our full delivery and returns policy.
