Reina Cavo 530x500 Brushed Stainless Steel

Reina Cavo

530 x 500mm / Brushed Stainless Steel
£230.45 inc. VAT £371.70
Skip to product information
Reina Cavo 530x500 Brushed Stainless Steel

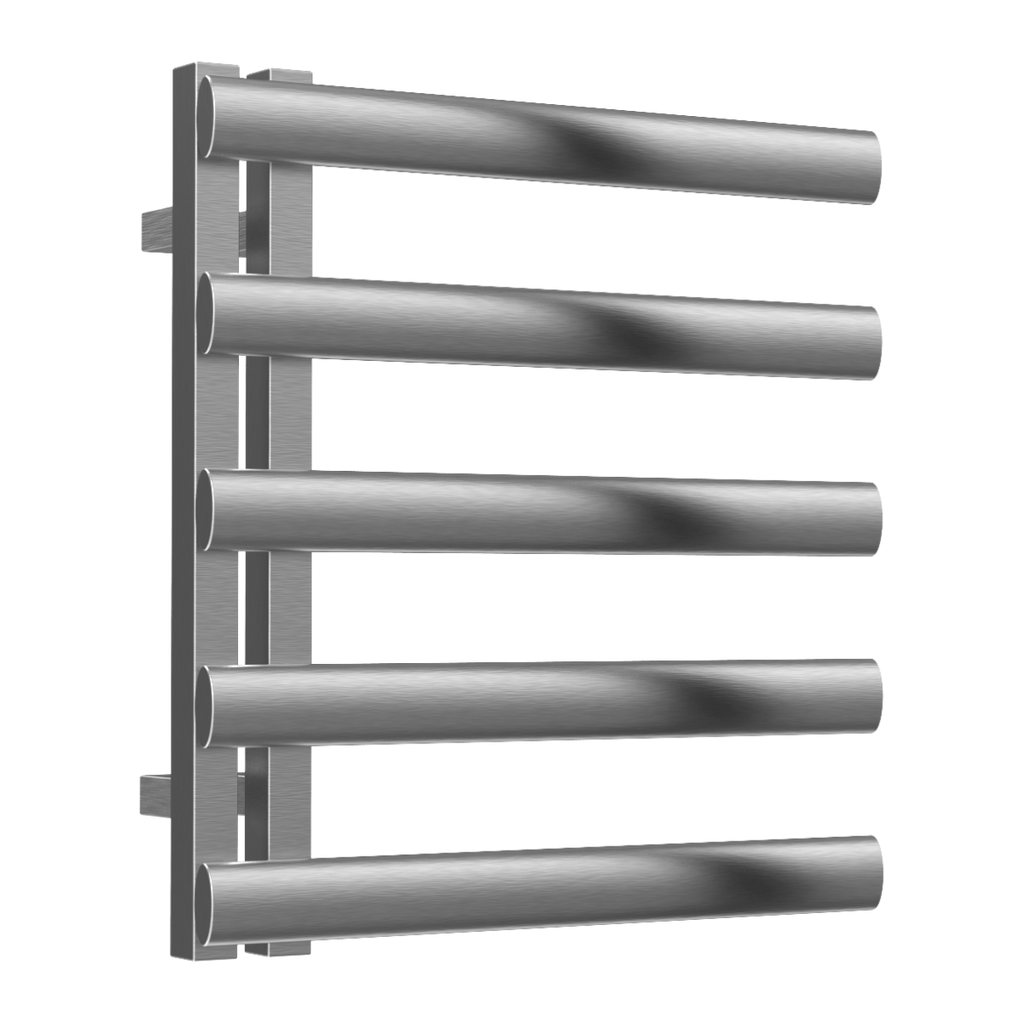

  • Reina Cavo 530x500 Brushed Stainless Steel

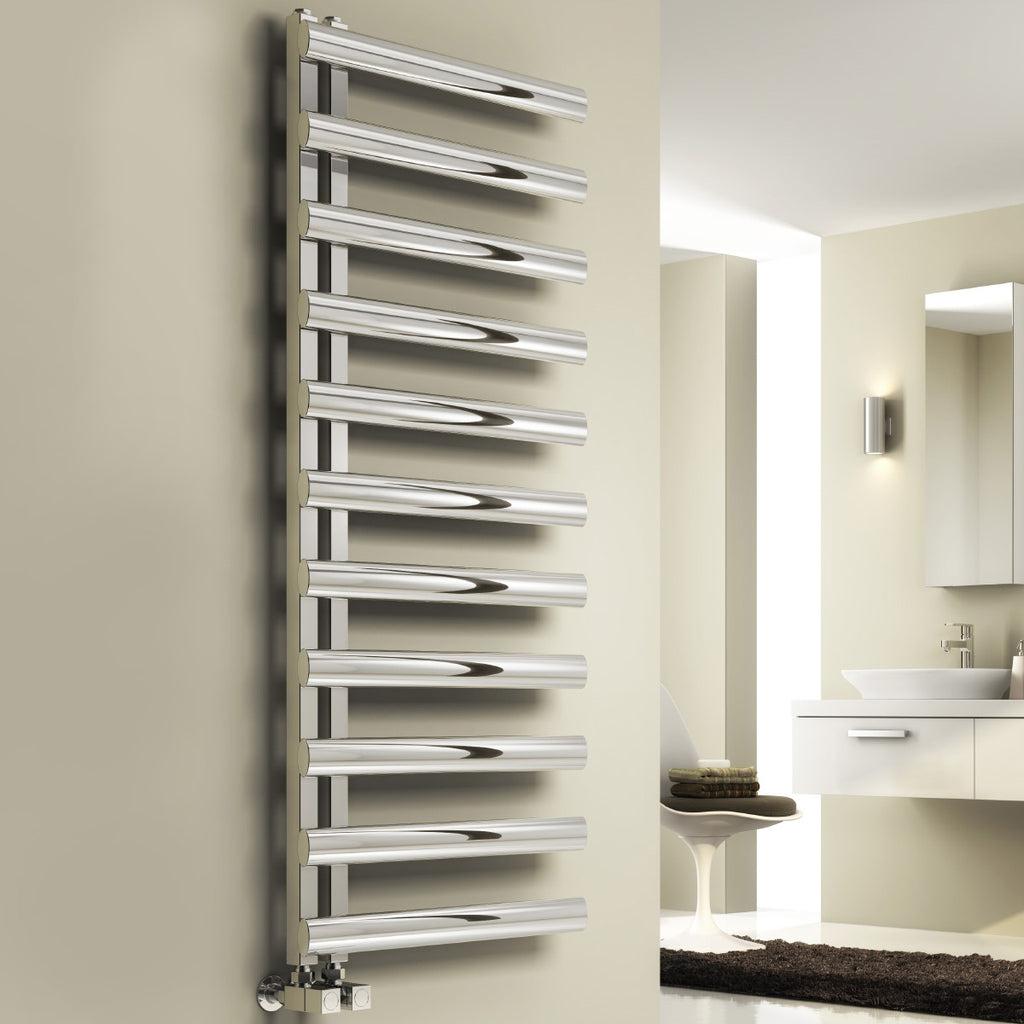

  • Reina Cavo radiator room setting

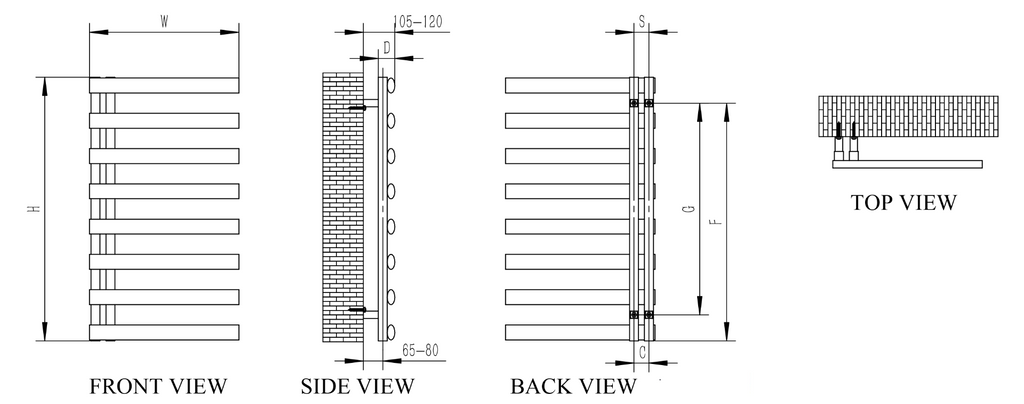

  • Reina Cavo technical drawing
Reina Cavo

Reina Cavo

£230.45 inc. VAT £371.70
Size
Finish
Complete your radiator Valves aren’t included with radiators. We’ve matched these to your finish.
Where do your pipes come from?

✓Free UK delivery on radiators ✓5-year guarantee ✓14-day returns

Not sure what output you need? Use our BTU calculator →

Description

The Reina Cavo is part of Reina's stainless steel radiator range, available in 4 sizes and 2 finishes. Choose your size and finish above to see the heat output and dimensions.

Key features

  • Stainless steel construction
  • Available in Brushed Stainless Steel and Polished Stainless Steel
  • Heat output from 185W to 511W (ΔT50)
  • Suitable for central heating, electric, dual fuel
  • Wall brackets and fixings included
  • 5-year manufacturer's guarantee
Specification

Brushed Stainless Steel – 530 x 500mm

  • Size: 530 x 500mm (H x W)
  • Pipe centres: 50mm
  • Wall to pipe centres: 65-80mm
  • Wall distance: 105-120mm
  • Heat output: 185W / 630 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: RNS-CV505B

Polished Stainless Steel – 530 x 500mm

  • Size: 530 x 500mm (H x W)
  • Pipe centres: 50mm
  • Wall to pipe centres: 65-80mm
  • Wall distance: 105-120mm
  • Heat output: 185W / 630 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: RNS-CV505P

Brushed Stainless Steel – 880 x 500mm

  • Size: 880 x 500mm (H x W)
  • Pipe centres: 50mm
  • Wall to pipe centres: 65-80mm
  • Wall distance: 105-120mm
  • Heat output: 287W / 977 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: RNS-CV508B

Polished Stainless Steel – 880 x 500mm

  • Size: 880 x 500mm (H x W)
  • Pipe centres: 50mm
  • Wall to pipe centres: 65-80mm
  • Wall distance: 105-120mm
  • Heat output: 287W / 977 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: RNS-CV508P

Brushed Stainless Steel – 1230 x 500mm

  • Size: 1230 x 500mm (H x W)
  • Pipe centres: 50mm
  • Wall to pipe centres: 65-80mm
  • Wall distance: 105-120mm
  • Heat output: 362W / 1235 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: RNS-CV512B

Polished Stainless Steel – 1230 x 500mm

  • Size: 1230 x 500mm (H x W)
  • Pipe centres: 50mm
  • Wall to pipe centres: 65-80mm
  • Wall distance: 105-120mm
  • Heat output: 362W / 1235 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: RNS-CV512P

Brushed Stainless Steel – 1580 x 500mm

  • Size: 1580 x 500mm (H x W)
  • Pipe centres: 50mm
  • Wall to pipe centres: 65-80mm
  • Wall distance: 105-120mm
  • Heat output: 511W / 1743 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: RNS-CV515B

Polished Stainless Steel – 1580 x 500mm

  • Size: 1580 x 500mm (H x W)
  • Pipe centres: 50mm
  • Wall to pipe centres: 65-80mm
  • Wall distance: 105-120mm
  • Heat output: 511W / 1743 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: RNS-CV515P

For pipe centres including valves, add approximately 90mm.
What’s included & guarantee

In the box

  • Reina Cavo radiator
  • Wall brackets and fixings

Valves are sold separately.

Guarantee

5-year manufacturer's guarantee against manufacturing defects.
Downloads

Installation guide (PDF)

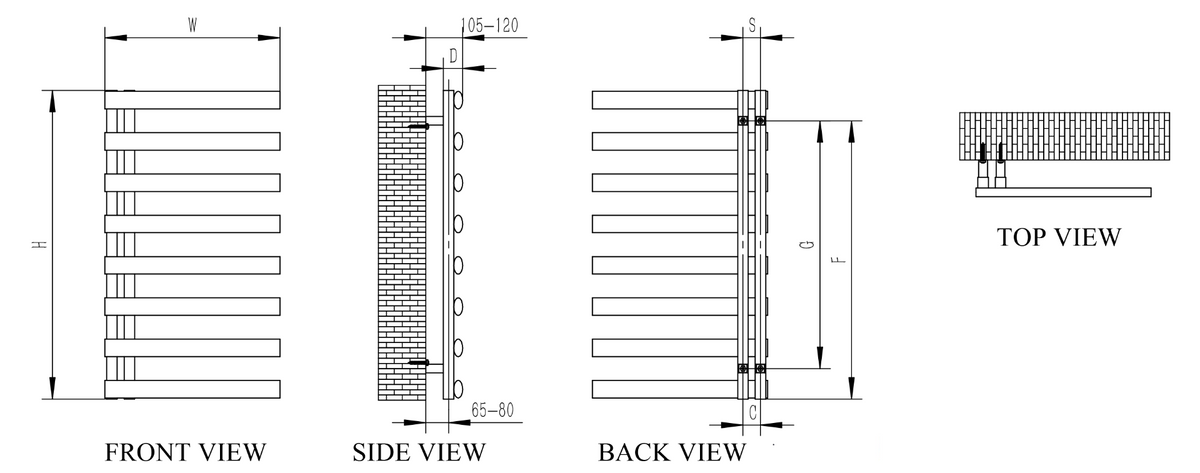

Technical drawing
Delivery & Returns

Delivery: Free UK delivery on radiators and towel rails, usually within 1–3 working days. Valves and accessories are free with a radiator, or £6 delivery when ordered on their own. Radiators come by two-person courier (usually DPD), who will call or text you to arrange delivery, so please give a mobile number you'll answer.

Returns: Change your mind within 14 days of delivery. Items must be unused and in their original packaging. We arrange collection by courier, and a collection charge is deducted from your refund: £42 for the first radiator, £6 for each additional radiator and £12 for valves and accessories. Custom RAL colours and made-to-order items can’t be returned unless faulty.

Damaged or faulty items are put right at no cost to you. Read our full delivery and returns policy.
