Reina Diva Flat 600x300 Chrome

Reina Diva Flat

600 x 300mm / Chrome
£88.65 inc. VAT £142.98
Skip to product information
Reina Diva Flat 600x300 Chrome

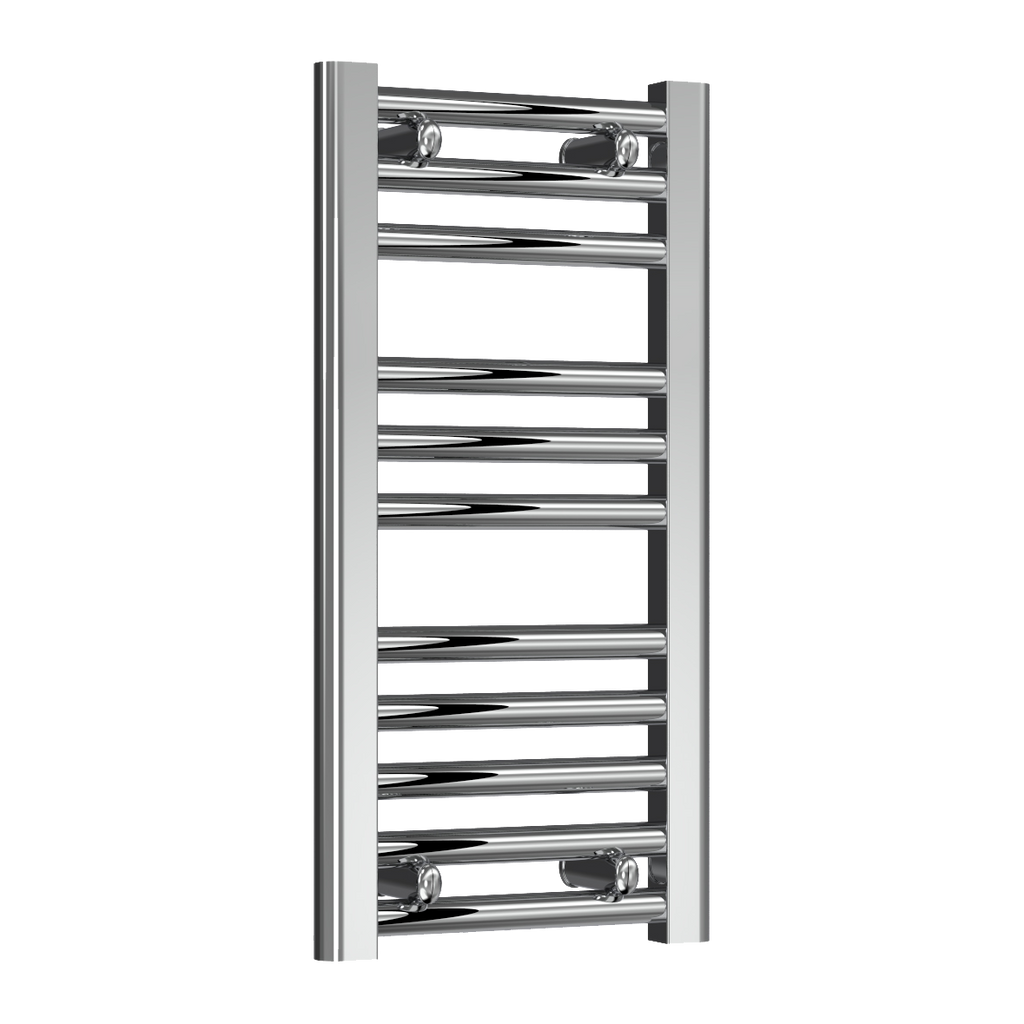

  • Reina Diva Flat 600x300 Chrome

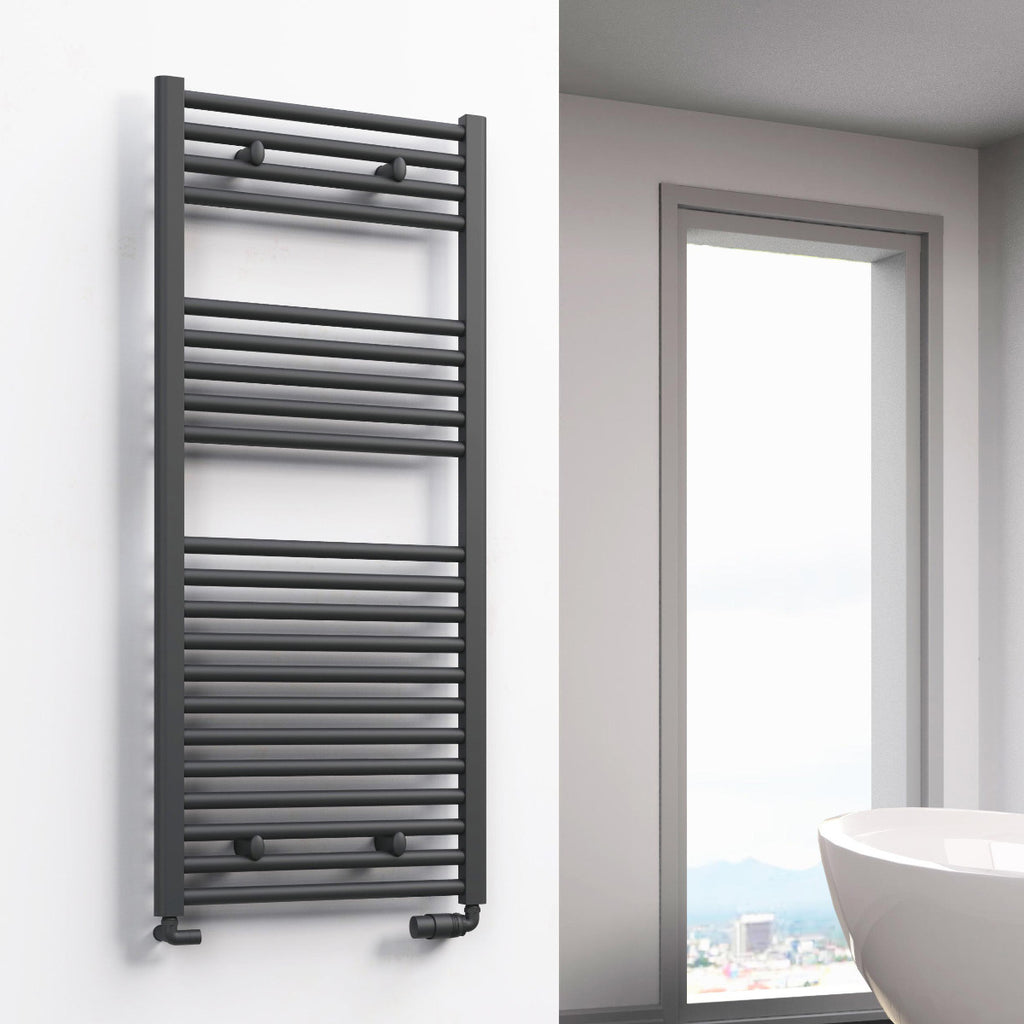

  • Reina Diva Flat radiator room setting

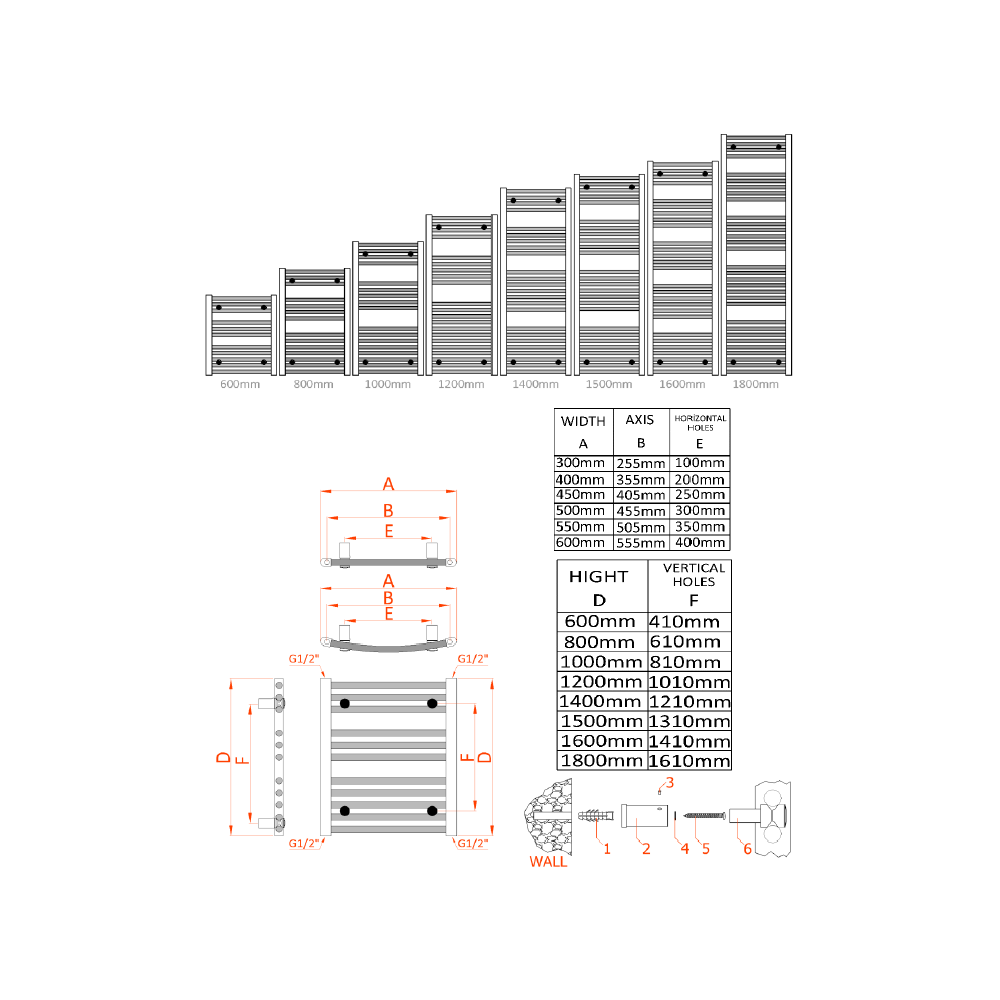

  • Reina Diva Flat technical drawing
Reina Diva Flat

Reina Diva Flat

£88.65 inc. VAT £142.98
Size
Finish
Complete your radiator Valves aren’t included with radiators. We’ve matched these to your finish.
Where do your pipes come from?

✓Free UK delivery on radiators ✓5-year guarantee ✓14-day returns

Not sure what output you need? Use our BTU calculator →

Description

The Reina Diva Flat is part of Reina's towel rail range, available in 27 sizes and 4 finishes. Choose your size and finish above to see the heat output and dimensions.

Key features

  • Available in Chrome, White, Anthracite and Black
  • Heat output from 128W to 981W (ΔT50)
  • Suitable for central heating, electric, dual fuel
  • Wall brackets and fixings included
  • 5-year manufacturer's guarantee
Specification

Chrome – 600 x 300mm

  • Size: 600 x 300mm (H x W)
  • Pipe centres: 260mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 128W / 435 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG30600CF

Chrome – 800 x 300mm

  • Size: 800 x 300mm (H x W)
  • Pipe centres: 260mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 154W / 525 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG30800CF

White – 800 x 300mm

  • Size: 800 x 300mm (H x W)
  • Pipe centres: 260mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 249W / 848 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG30800WF

Chrome – 800 x 400mm

  • Size: 800 x 400mm (H x W)
  • Pipe centres: 360mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 194W / 663 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG40800CF

Anthracite – 800 x 400mm

  • Size: 800 x 400mm (H x W)
  • Pipe centres: 360mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 284W / 968 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG40800AF

Black – 800 x 400mm

  • Size: 800 x 400mm (H x W)
  • Pipe centres: 360mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 284W / 968 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG40800BF

White – 800 x 400mm

  • Size: 800 x 400mm (H x W)
  • Pipe centres: 360mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 284W / 968 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG40800WF

Chrome – 800 x 450mm

  • Size: 800 x 450mm (H x W)
  • Pipe centres: 410mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 207W / 706 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG45800CF

Chrome – 800 x 500mm

  • Size: 800 x 500mm (H x W)
  • Pipe centres: 460mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 233W / 793 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG50800CF

Anthracite – 800 x 500mm

  • Size: 800 x 500mm (H x W)
  • Pipe centres: 460mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 341W / 1162 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG50800AF

Black – 800 x 500mm

  • Size: 800 x 500mm (H x W)
  • Pipe centres: 460mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 341W / 1162 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG50800BF

White – 800 x 500mm

  • Size: 800 x 500mm (H x W)
  • Pipe centres: 460mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 341W / 1162 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG50800WF

Chrome – 800 x 600mm

  • Size: 800 x 600mm (H x W)
  • Pipe centres: 560mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 256W / 873 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG60800CF

Anthracite – 800 x 600mm

  • Size: 800 x 600mm (H x W)
  • Pipe centres: 560mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 376W / 1284 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG60800AF

Black – 800 x 600mm

  • Size: 800 x 600mm (H x W)
  • Pipe centres: 560mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 376W / 1284 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG60800BF

White – 800 x 600mm

  • Size: 800 x 600mm (H x W)
  • Pipe centres: 560mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 376W / 1284 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG60800WF

Chrome – 800 x 750mm

  • Size: 800 x 750mm (H x W)
  • Pipe centres: 710mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 288W / 982 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG75800CF

Chrome – 1000 x 400mm

  • Size: 1000 x 400mm (H x W)
  • Pipe centres: 360mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 283W / 966 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG40100CF

Chrome – 1000 x 500mm

  • Size: 1000 x 500mm (H x W)
  • Pipe centres: 460mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 323W / 1102 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG50100CF

Chrome – 1000 x 600mm

  • Size: 1000 x 600mm (H x W)
  • Pipe centres: 560mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 349W / 1191 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG60100CF

Chrome – 1200 x 300mm

  • Size: 1200 x 300mm (H x W)
  • Pipe centres: 260mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 270W / 921 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG30120CF

White – 1200 x 300mm

  • Size: 1200 x 300mm (H x W)
  • Pipe centres: 260mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 441W / 1505 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG30120WF

Chrome – 1200 x 400mm

  • Size: 1200 x 400mm (H x W)
  • Pipe centres: 360mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 372W / 1268 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG40120CF

Anthracite – 1200 x 400mm

  • Size: 1200 x 400mm (H x W)
  • Pipe centres: 360mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 543W / 1851 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG40120AF

Black – 1200 x 400mm

  • Size: 1200 x 400mm (H x W)
  • Pipe centres: 360mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 543W / 1851 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG40120BF

White – 1200 x 400mm

  • Size: 1200 x 400mm (H x W)
  • Pipe centres: 360mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 543W / 1851 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG40120WF

Chrome – 1200 x 450mm

  • Size: 1200 x 450mm (H x W)
  • Pipe centres: 410mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 391W / 1334 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG45120CF

Chrome – 1200 x 500mm

  • Size: 1200 x 500mm (H x W)
  • Pipe centres: 460mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 414W / 1412 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG50120CF

Anthracite – 1200 x 500mm

  • Size: 1200 x 500mm (H x W)
  • Pipe centres: 460mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 609W / 2076 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG50120AF

Black – 1200 x 500mm

  • Size: 1200 x 500mm (H x W)
  • Pipe centres: 460mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 609W / 2076 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG50120BF

White – 1200 x 500mm

  • Size: 1200 x 500mm (H x W)
  • Pipe centres: 460mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 609W / 2076 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG50120WF

Chrome – 1200 x 600mm

  • Size: 1200 x 600mm (H x W)
  • Pipe centres: 560mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 448W / 1527 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG60120CF

Anthracite – 1200 x 600mm

  • Size: 1200 x 600mm (H x W)
  • Pipe centres: 560mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 658W / 2242 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG60120AF

Black – 1200 x 600mm

  • Size: 1200 x 600mm (H x W)
  • Pipe centres: 560mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 658W / 2242 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG60120BF

White – 1200 x 600mm

  • Size: 1200 x 600mm (H x W)
  • Pipe centres: 560mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 658W / 2242 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG60120WF

Chrome – 1200 x 750mm

  • Size: 1200 x 750mm (H x W)
  • Pipe centres: 710mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 483W / 1646 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG75120CF

Chrome – 1400 x 500mm

  • Size: 1400 x 500mm (H x W)
  • Pipe centres: 460mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 467W / 1594 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG50140CF

Chrome – 1400 x 600mm

  • Size: 1400 x 600mm (H x W)
  • Pipe centres: 560mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 517W / 1763 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG60140CF

Chrome – 1600 x 300mm

  • Size: 1600 x 300mm (H x W)
  • Pipe centres: 260mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 372W / 1270 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG30160CF

Chrome – 1600 x 400mm

  • Size: 1600 x 400mm (H x W)
  • Pipe centres: 360mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 462W / 1575 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG40160CF

Chrome – 1600 x 500mm

  • Size: 1600 x 500mm (H x W)
  • Pipe centres: 460mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 539W / 1838 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG50160CF

Chrome – 1600 x 600mm

  • Size: 1600 x 600mm (H x W)
  • Pipe centres: 560mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 586W / 1998 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG60160CF

Chrome – 1800 x 400mm

  • Size: 1800 x 400mm (H x W)
  • Pipe centres: 360mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 509W / 1735 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG40180CF

Anthracite – 1800 x 400mm

  • Size: 1800 x 400mm (H x W)
  • Pipe centres: 360mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 748W / 2551 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG40180AF

Black – 1800 x 400mm

  • Size: 1800 x 400mm (H x W)
  • Pipe centres: 360mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 748W / 2551 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG40180BF

White – 1800 x 400mm

  • Size: 1800 x 400mm (H x W)
  • Pipe centres: 360mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 748W / 2551 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG40180WF

Chrome – 1800 x 450mm

  • Size: 1800 x 450mm (H x W)
  • Pipe centres: 410mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 561W / 1913 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG45180CF

Chrome – 1800 x 500mm

  • Size: 1800 x 500mm (H x W)
  • Pipe centres: 460mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 622W / 2120 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG50180CF

Anthracite – 1800 x 500mm

  • Size: 1800 x 500mm (H x W)
  • Pipe centres: 460mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 907W / 3095 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG50180AF

Black – 1800 x 500mm

  • Size: 1800 x 500mm (H x W)
  • Pipe centres: 460mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 907W / 3095 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG50180BF

White – 1800 x 500mm

  • Size: 1800 x 500mm (H x W)
  • Pipe centres: 460mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 907W / 3095 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG50180WF

Chrome – 1800 x 600mm

  • Size: 1800 x 600mm (H x W)
  • Pipe centres: 560mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 668W / 2277 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG60180CF

Anthracite – 1800 x 600mm

  • Size: 1800 x 600mm (H x W)
  • Pipe centres: 560mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 981W / 3347 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG60180AF

Black – 1800 x 600mm

  • Size: 1800 x 600mm (H x W)
  • Pipe centres: 560mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 981W / 3347 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG60180BF

White – 1800 x 600mm

  • Size: 1800 x 600mm (H x W)
  • Pipe centres: 560mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 981W / 3347 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG60180WF

Chrome – 1800 x 750mm

  • Size: 1800 x 750mm (H x W)
  • Pipe centres: 710mm
  • Wall to pipe centres: 70-85mm
  • Wall distance: 85-100mm
  • Heat output: 723W / 2466 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: AG75180CF

For pipe centres including valves, add approximately 90mm.
What’s included & guarantee

In the box

  • Reina Diva Flat radiator
  • Wall brackets and fixings

Valves are sold separately.

Guarantee

5-year manufacturer's guarantee against manufacturing defects.
Downloads

Installation guide (PDF)

Technical drawing
Delivery & Returns

Delivery: Free UK delivery on radiators and towel rails, usually within 1–3 working days. Valves and accessories are free with a radiator, or £6 delivery when ordered on their own. Radiators come by two-person courier (usually DPD), who will call or text you to arrange delivery, so please give a mobile number you'll answer.

Returns: Change your mind within 14 days of delivery. Items must be unused and in their original packaging. We arrange collection by courier, and a collection charge is deducted from your refund: £42 for the first radiator, £6 for each additional radiator and £12 for valves and accessories. Custom RAL colours and made-to-order items can’t be returned unless faulty.

Damaged or faulty items are put right at no cost to you. Read our full delivery and returns policy.

You may also like
