Reina Loco Horizontal Double 600x1420 Anthracite

Reina Loco Horizontal Double

600 x 1420mm / Anthracite
£578.09 inc. VAT £932.40
Skip to product information
Reina Loco Horizontal Double 600x1420 Anthracite

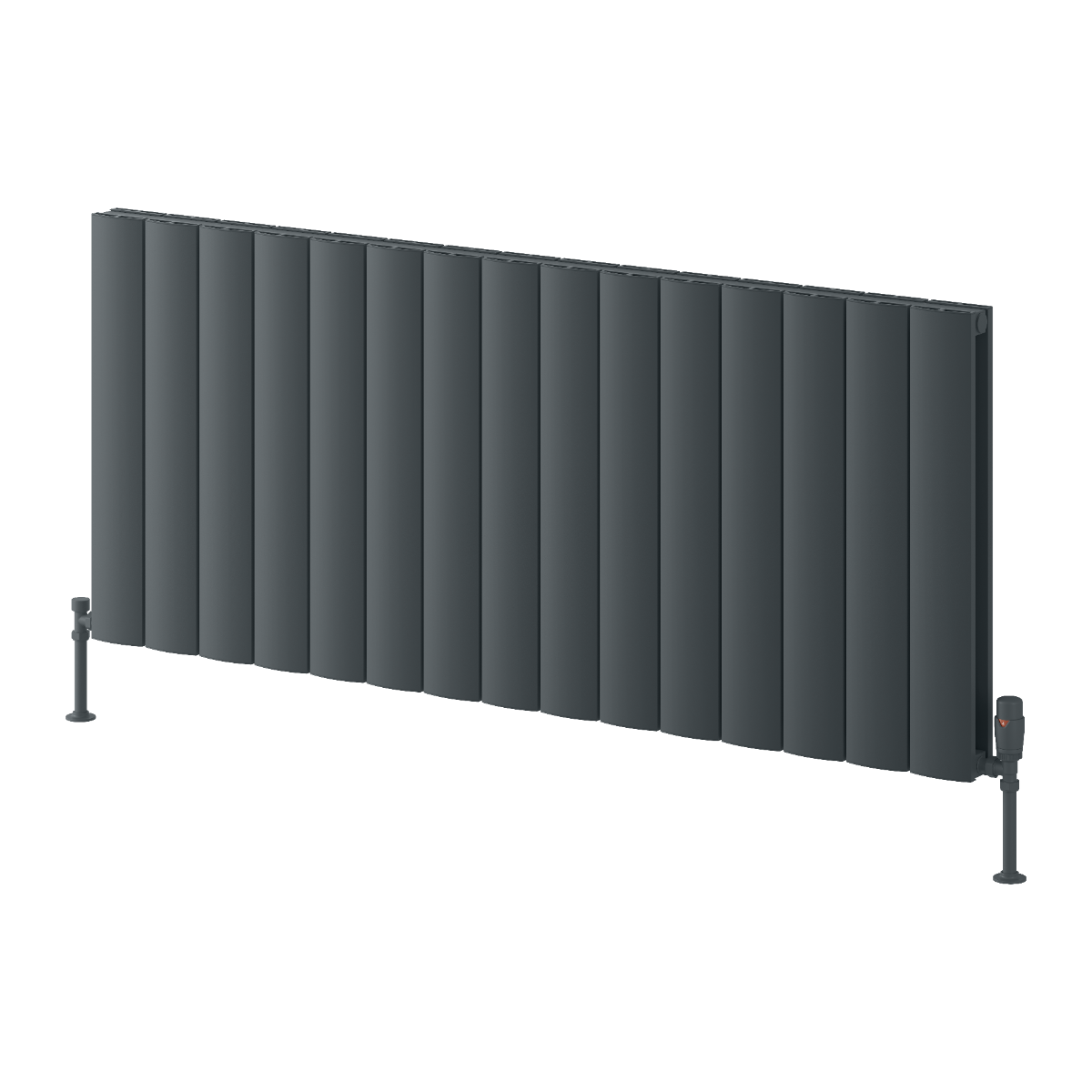

  • Reina Loco Horizontal Double 600x1420 Anthracite

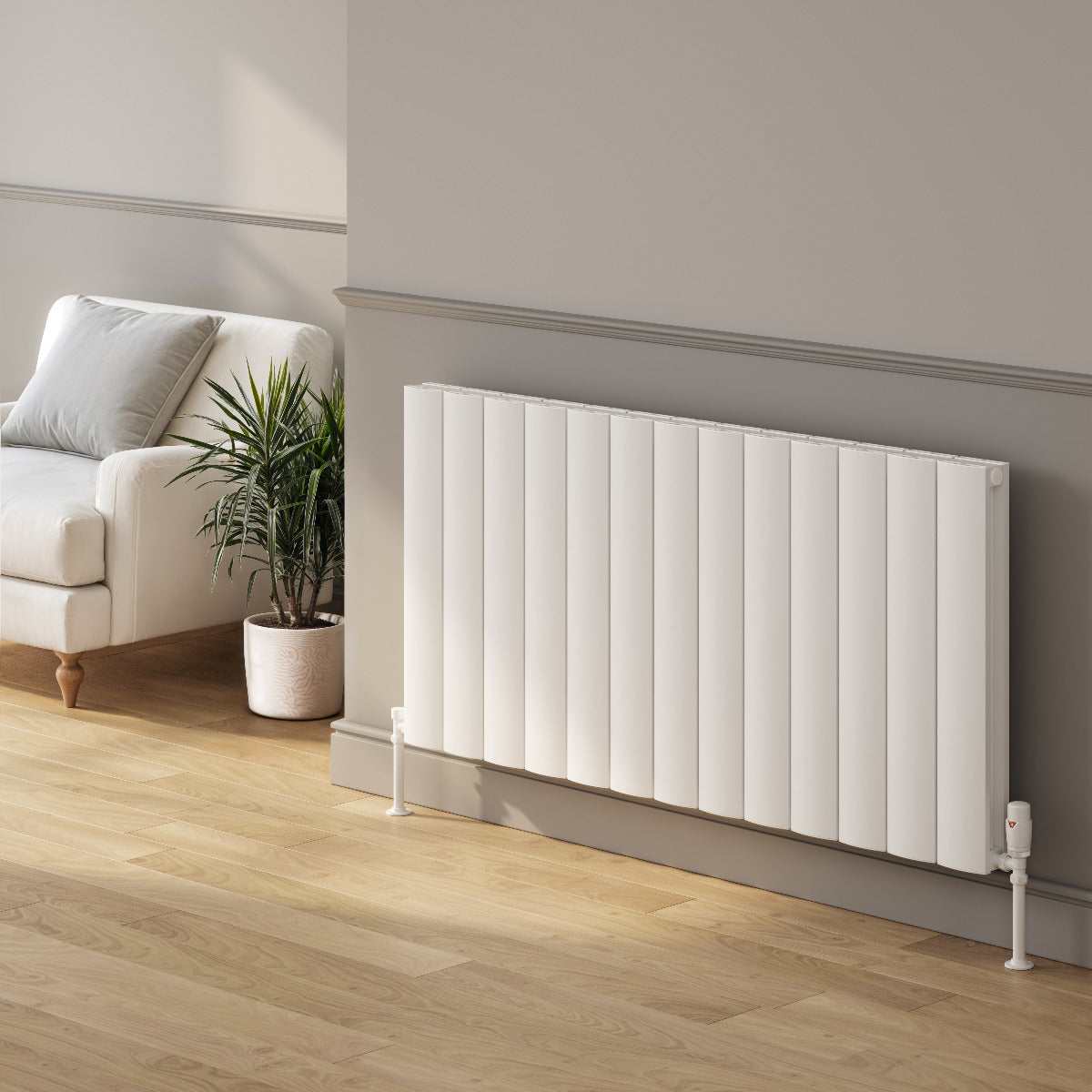

  • Reina Loco Horizontal Double radiator room setting

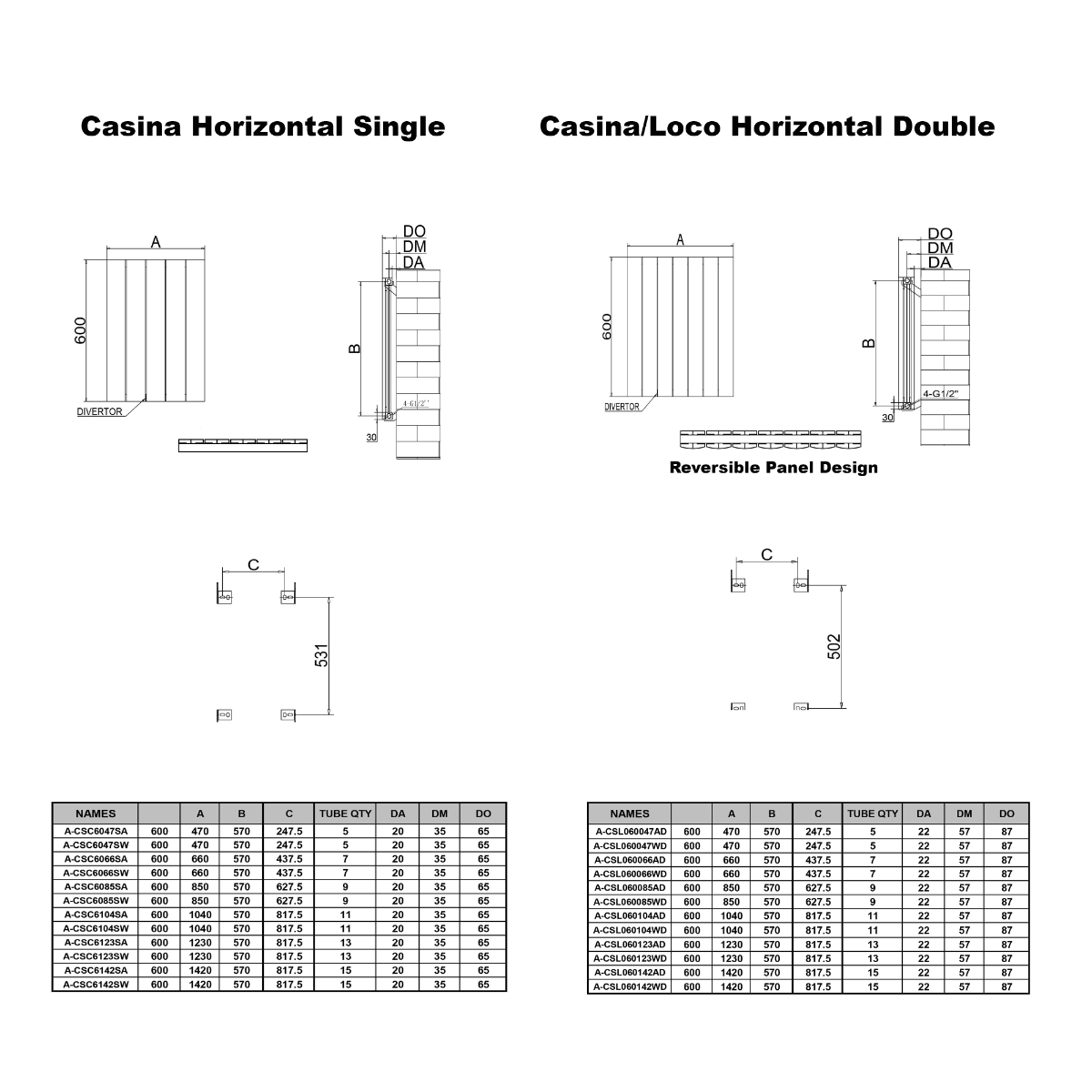

  • Reina Loco Horizontal Double technical drawing
Reina Loco Horizontal Double

Reina Loco Horizontal Double

£578.09 inc. VAT £932.40
Size
Finish
Complete your radiator Valves aren’t included with radiators. We’ve matched these to your finish.
Where do your pipes come from?

✓Free UK delivery on radiators ✓5-year guarantee ✓14-day returns

Not sure what output you need? Use our BTU calculator →

Description

The Reina Loco Horizontal Double is part of Reina's aluminium radiator range, available in 6 sizes and 2 finishes. Choose your size and finish above to see the heat output and dimensions.

Key features

  • Aluminium construction
  • Available in Anthracite and White
  • Heat output from 516W to 1548W (ΔT50)
  • Suitable for central heating, electric, dual fuel
  • Wall brackets and fixings included
  • 5-year manufacturer's guarantee
Specification

Anthracite – 600 x 1420mm

  • Size: 600 x 1420mm (H x W)
  • Pipe centres: 1420mm
  • Wall to pipe centres: 57mm
  • Wall distance: 87mm
  • Heat output: 1548W / 5278 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-CSL060142AD-LHD

White – 600 x 1420mm

  • Size: 600 x 1420mm (H x W)
  • Pipe centres: 1420mm
  • Wall to pipe centres: 57mm
  • Wall distance: 87mm
  • Heat output: 1548W / 5278 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-CSL060142WD-LHD

Anthracite – 600 x 1230mm

  • Size: 600 x 1230mm (H x W)
  • Pipe centres: 1230mm
  • Wall to pipe centres: 57mm
  • Wall distance: 87mm
  • Heat output: 1341W / 4574 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-CSL060123AD-LHD

White – 600 x 1230mm

  • Size: 600 x 1230mm (H x W)
  • Pipe centres: 1230mm
  • Wall to pipe centres: 57mm
  • Wall distance: 87mm
  • Heat output: 1341W / 4574 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-CSL060123WD-LHD

Anthracite – 600 x 1040mm

  • Size: 600 x 1040mm (H x W)
  • Pipe centres: 1040mm
  • Wall to pipe centres: 57mm
  • Wall distance: 87mm
  • Heat output: 1135W / 3870 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-CSL060104AD-LHD

White – 600 x 1040mm

  • Size: 600 x 1040mm (H x W)
  • Pipe centres: 1040mm
  • Wall to pipe centres: 57mm
  • Wall distance: 87mm
  • Heat output: 1135W / 3870 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-CSL060104WD-LHD

Anthracite – 600 x 850mm

  • Size: 600 x 850mm (H x W)
  • Pipe centres: 850mm
  • Wall to pipe centres: 57mm
  • Wall distance: 87mm
  • Heat output: 929W / 3166 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-CSL060085AD-LHD

White – 600 x 850mm

  • Size: 600 x 850mm (H x W)
  • Pipe centres: 850mm
  • Wall to pipe centres: 57mm
  • Wall distance: 87mm
  • Heat output: 929W / 3166 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-CSL060085WD-LHD

Anthracite – 600 x 660mm

  • Size: 600 x 660mm (H x W)
  • Pipe centres: 660mm
  • Wall to pipe centres: 57mm
  • Wall distance: 87mm
  • Heat output: 722W / 2463 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-CSL060066AD-LHD

White – 600 x 660mm

  • Size: 600 x 660mm (H x W)
  • Pipe centres: 660mm
  • Wall to pipe centres: 57mm
  • Wall distance: 87mm
  • Heat output: 722W / 2463 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-CSL060066WD-LHD

Anthracite – 600 x 470mm

  • Size: 600 x 470mm (H x W)
  • Pipe centres: 470mm
  • Wall to pipe centres: 57mm
  • Wall distance: 87mm
  • Heat output: 516W / 1759 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-CSL060047AD-LHD

White – 600 x 470mm

  • Size: 600 x 470mm (H x W)
  • Pipe centres: 470mm
  • Wall to pipe centres: 57mm
  • Wall distance: 87mm
  • Heat output: 516W / 1759 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-CSL060047WD-LHD

For pipe centres including valves, add approximately 90mm.
What’s included & guarantee

In the box

  • Reina Loco Horizontal Double radiator
  • Wall brackets and fixings

Valves are sold separately.

Guarantee

5-year manufacturer's guarantee against manufacturing defects.
Downloads

Installation guide (PDF)

Technical drawing
