Reina Neva Horizontal Single 550x413 White

Reina Neva Horizontal

Single / 550 x 413mm / White
£95.31 inc. VAT £153.72
Skip to product information

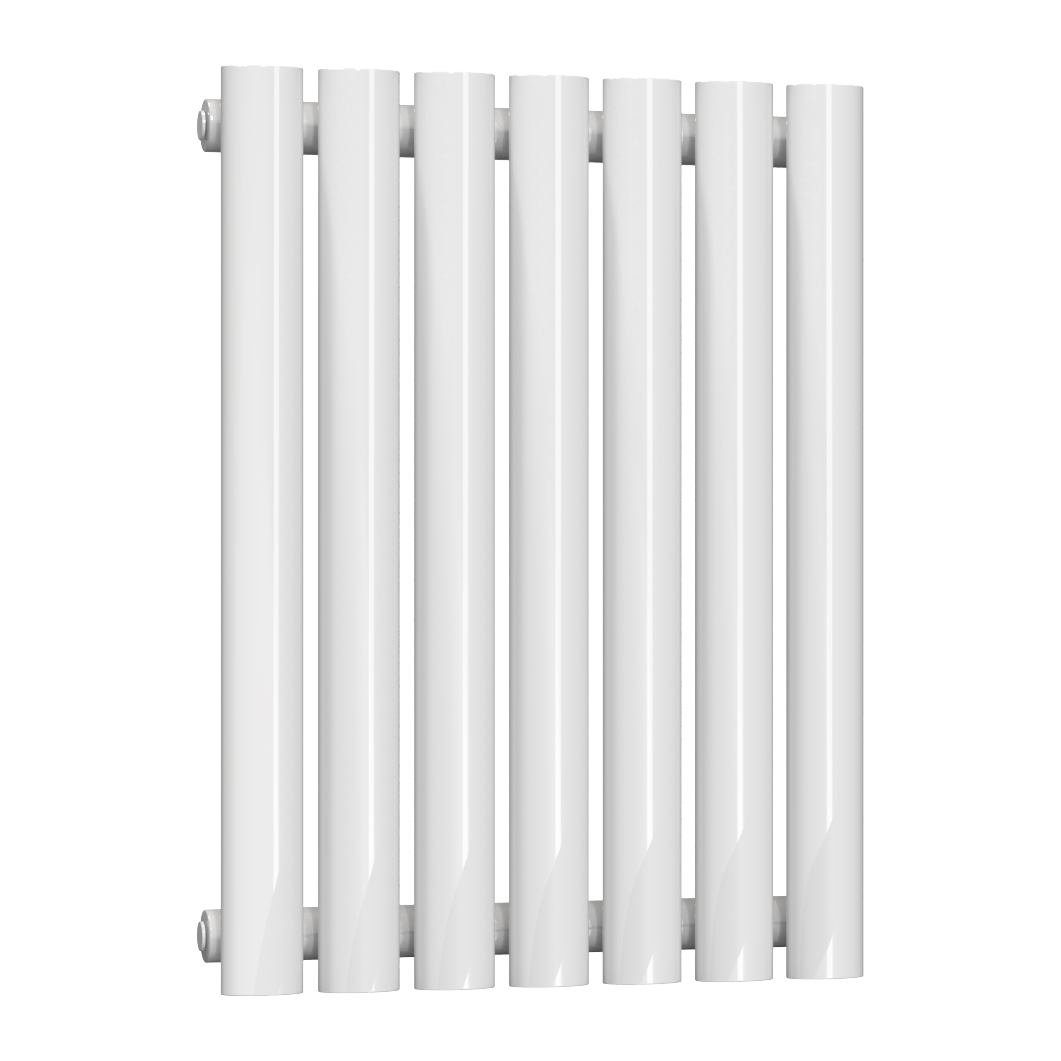

Reina Neva Horizontal Single 550x413 White
  • Reina Neva Horizontal Single 550x413 White

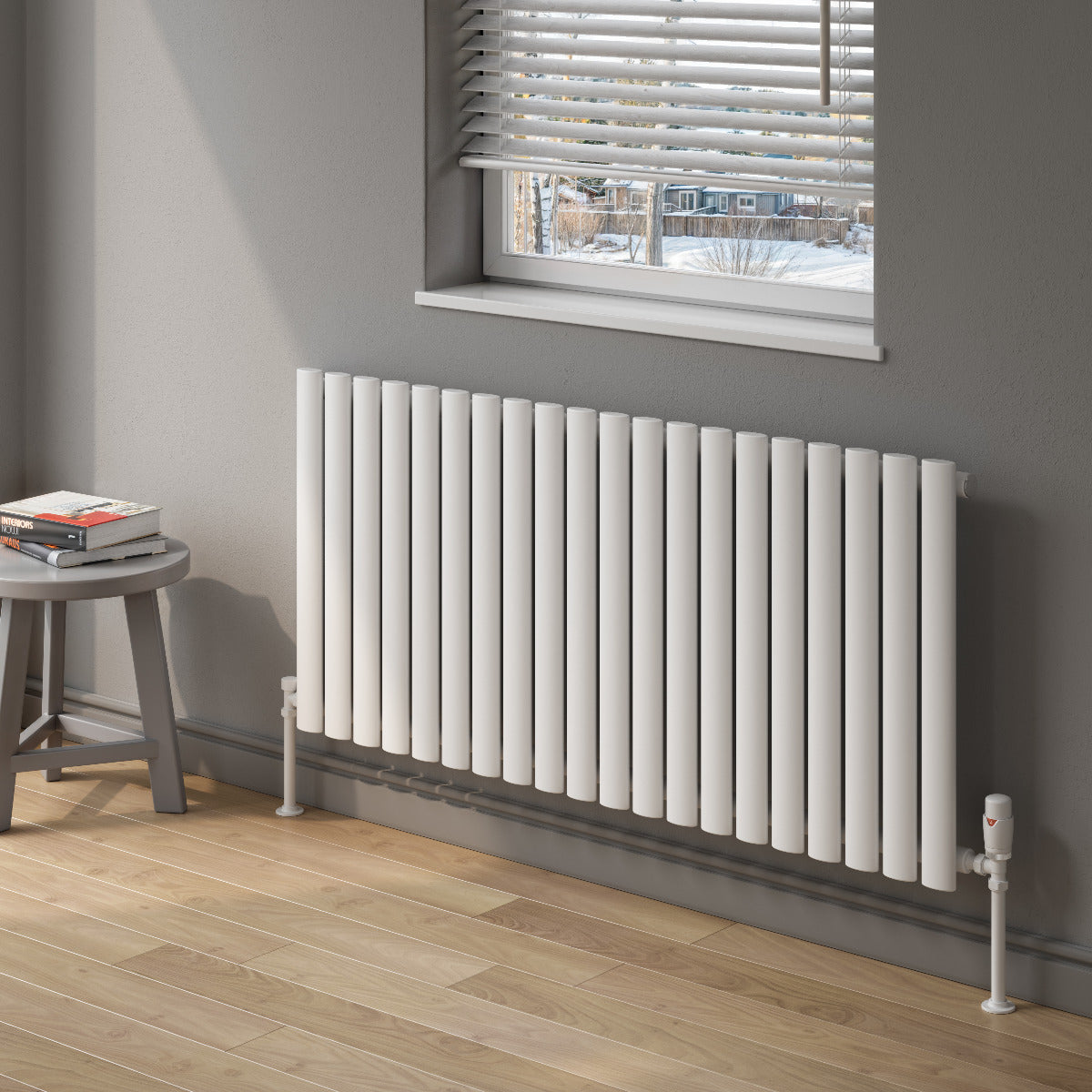

  • Reina Neva Horizontal radiator room setting

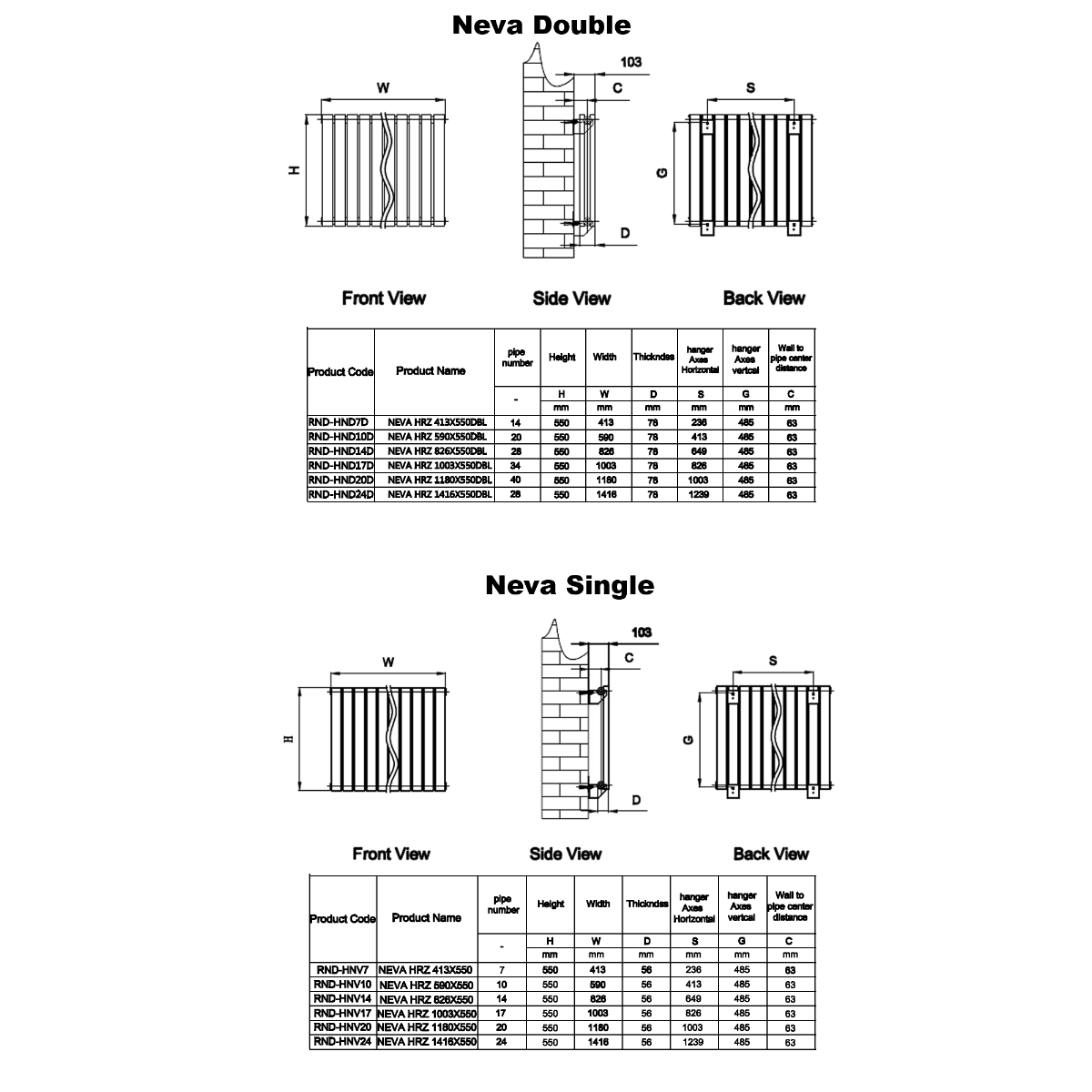

  • Reina Neva Horizontal technical drawing
Reina Neva Horizontal

Reina Neva Horizontal

£95.31 inc. VAT £153.72
Type
Size
Finish
Complete your radiator Valves aren’t included with radiators. We’ve matched these to your finish.
Where do your pipes come from?

✓Free UK delivery on radiators ✓5-year guarantee ✓14-day returns

Not sure what output you need? Use our BTU calculator →

Description

The Reina Neva Horizontal is part of Reina's mild steel radiator range, available in 6 sizes and 2 finishes. Choose your size and finish above to see the heat output and dimensions.

Key features

  • Mild steel construction
  • Available in White and Anthracite
  • Heat output from 272W to 1489W (ΔT50)
  • Suitable for central heating, electric, dual fuel
  • Wall brackets and fixings included
  • 5-year manufacturer's guarantee
Specification

White – 550 x 413mm

  • Size: 550 x 413mm (H x W)
  • Pipe centres: 413mm
  • Wall to pipe centres: 65mm
  • Wall distance: 103mm
  • Heat output: 272W / 927 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: RND-HNV7

Anthracite – 550 x 413mm

  • Size: 550 x 413mm (H x W)
  • Pipe centres: 413mm
  • Wall to pipe centres: 65mm
  • Wall distance: 103mm
  • Heat output: 272W / 927 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: RND-HNV7A

White – 550 x 590mm

  • Size: 550 x 590mm (H x W)
  • Pipe centres: 590mm
  • Wall to pipe centres: 65mm
  • Wall distance: 103mm
  • Heat output: 388W / 1323 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: RND-HNV10

Anthracite – 550 x 590mm

  • Size: 550 x 590mm (H x W)
  • Pipe centres: 590mm
  • Wall to pipe centres: 65mm
  • Wall distance: 103mm
  • Heat output: 388W / 1323 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: RND-HNV10A

White – 550 x 826mm

  • Size: 550 x 826mm (H x W)
  • Pipe centres: 826mm
  • Wall to pipe centres: 65mm
  • Wall distance: 103mm
  • Heat output: 546W / 1862 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: RND-HNV14

Anthracite – 550 x 826mm

  • Size: 550 x 826mm (H x W)
  • Pipe centres: 826mm
  • Wall to pipe centres: 65mm
  • Wall distance: 103mm
  • Heat output: 546W / 1862 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: RND-HNV14A

White – 550 x 1003mm

  • Size: 550 x 1003mm (H x W)
  • Pipe centres: 1003mm
  • Wall to pipe centres: 65mm
  • Wall distance: 103mm
  • Heat output: 660W / 2249 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: RND-HNV17

Anthracite – 550 x 1003mm

  • Size: 550 x 1003mm (H x W)
  • Pipe centres: 1003mm
  • Wall to pipe centres: 65mm
  • Wall distance: 103mm
  • Heat output: 660W / 2249 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: RND-HNV17A

White – 550 x 1180mm

  • Size: 550 x 1180mm (H x W)
  • Pipe centres: 1180mm
  • Wall to pipe centres: 65mm
  • Wall distance: 103mm
  • Heat output: 776W / 2645 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: RND-HNV20

Anthracite – 550 x 1180mm

  • Size: 550 x 1180mm (H x W)
  • Pipe centres: 1180mm
  • Wall to pipe centres: 65mm
  • Wall distance: 103mm
  • Heat output: 776W / 2645 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: RND-HNV20A

White – 550 x 1416mm

  • Size: 550 x 1416mm (H x W)
  • Pipe centres: 1416mm
  • Wall to pipe centres: 65mm
  • Wall distance: 103mm
  • Heat output: 931W / 3174 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: RND-HNV24

Anthracite – 550 x 1416mm

  • Size: 550 x 1416mm (H x W)
  • Pipe centres: 1416mm
  • Wall to pipe centres: 65mm
  • Wall distance: 103mm
  • Heat output: 931W / 3174 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: RND-HNV24A

Anthracite – 550 x 413mm

  • Size: 550 x 413mm (H x W)
  • Pipe centres: 413mm
  • Wall to pipe centres: 65mm
  • Wall distance: 103mm
  • Heat output: 435W / 1483 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: RND-HNV7AD

White – 550 x 413mm

  • Size: 550 x 413mm (H x W)
  • Pipe centres: 413mm
  • Wall to pipe centres: 65mm
  • Wall distance: 103mm
  • Heat output: 435W / 1483 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: RND-HNV7D

Anthracite – 550 x 590mm

  • Size: 550 x 590mm (H x W)
  • Pipe centres: 590mm
  • Wall to pipe centres: 65mm
  • Wall distance: 103mm
  • Heat output: 621W / 2117 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: RND-HNV10AD

White – 550 x 590mm

  • Size: 550 x 590mm (H x W)
  • Pipe centres: 590mm
  • Wall to pipe centres: 65mm
  • Wall distance: 103mm
  • Heat output: 621W / 2117 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: RND-HNV10D

Anthracite – 550 x 826mm

  • Size: 550 x 826mm (H x W)
  • Pipe centres: 826mm
  • Wall to pipe centres: 65mm
  • Wall distance: 103mm
  • Heat output: 873W / 2978 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: RND-HNV14AD

White – 550 x 826mm

  • Size: 550 x 826mm (H x W)
  • Pipe centres: 826mm
  • Wall to pipe centres: 65mm
  • Wall distance: 103mm
  • Heat output: 873W / 2978 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: RND-HNV14D

Anthracite – 550 x 1003mm

  • Size: 550 x 1003mm (H x W)
  • Pipe centres: 1003mm
  • Wall to pipe centres: 65mm
  • Wall distance: 103mm
  • Heat output: 1055W / 3598 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: RND-HNV17AD

White – 550 x 1003mm

  • Size: 550 x 1003mm (H x W)
  • Pipe centres: 1003mm
  • Wall to pipe centres: 65mm
  • Wall distance: 103mm
  • Heat output: 1055W / 3598 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: RND-HNV17D

Anthracite – 550 x 1180mm

  • Size: 550 x 1180mm (H x W)
  • Pipe centres: 1180mm
  • Wall to pipe centres: 65mm
  • Wall distance: 103mm
  • Heat output: 1241W / 4233 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: RND-HNV20AD

White – 550 x 1180mm

  • Size: 550 x 1180mm (H x W)
  • Pipe centres: 1180mm
  • Wall to pipe centres: 65mm
  • Wall distance: 103mm
  • Heat output: 1241W / 4233 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: RND-HNV20D

Anthracite – 550 x 1416mm

  • Size: 550 x 1416mm (H x W)
  • Pipe centres: 1416mm
  • Wall to pipe centres: 65mm
  • Wall distance: 103mm
  • Heat output: 1489W / 5079 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: RND-HNV24AD

White – 550 x 1416mm

  • Size: 550 x 1416mm (H x W)
  • Pipe centres: 1416mm
  • Wall to pipe centres: 65mm
  • Wall distance: 103mm
  • Heat output: 1489W / 5079 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: RND-HNV24D

For pipe centres including valves, add approximately 90mm.
What’s included & guarantee

In the box

  • Reina Neva Horizontal radiator
  • Wall brackets and fixings

Valves are sold separately.

Guarantee

5-year manufacturer's guarantee against manufacturing defects.
Downloads

Installation guide (PDF)

Technical drawing
Delivery & Returns

Delivery: Free UK delivery on radiators and towel rails, usually within 1–3 working days. Valves and accessories are free with a radiator, or £6 delivery when ordered on their own. Radiators come by two-person courier (usually DPD), who will call or text you to arrange delivery, so please give a mobile number you'll answer.

Returns: Change your mind within 14 days of delivery. Items must be unused and in their original packaging. We arrange collection by courier, and a collection charge is deducted from your refund: £42 for the first radiator, £6 for each additional radiator and £12 for valves and accessories. Custom RAL colours and made-to-order items can’t be returned unless faulty.

Damaged or faulty items are put right at no cost to you. Read our full delivery and returns policy.
