Reina Piatto Horizontal Single 600x445 White

Reina Piatto Horizontal

Single / 600 x 445mm / White
£159.36 inc. VAT £257.04
Skip to product information
Reina Piatto Horizontal Single 600x445 White

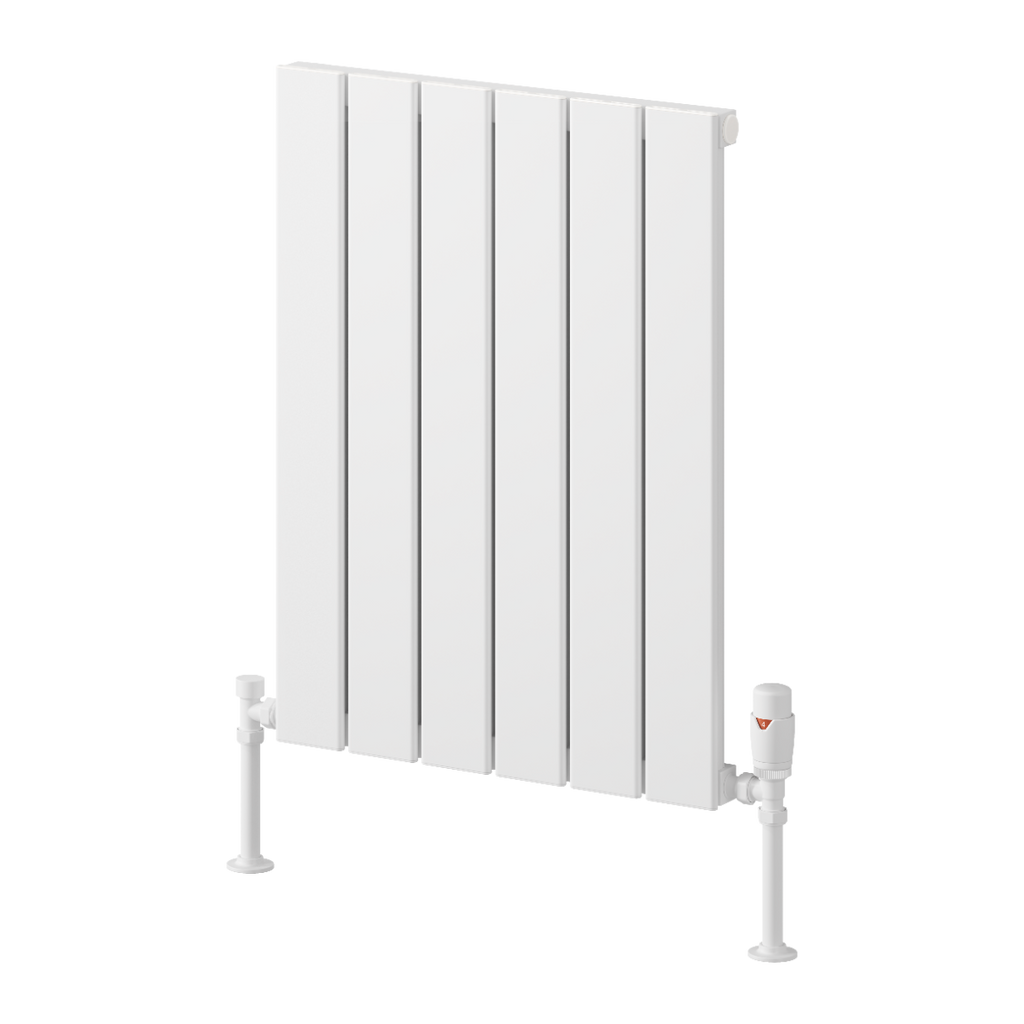

  • Reina Piatto Horizontal Single 600x445 White

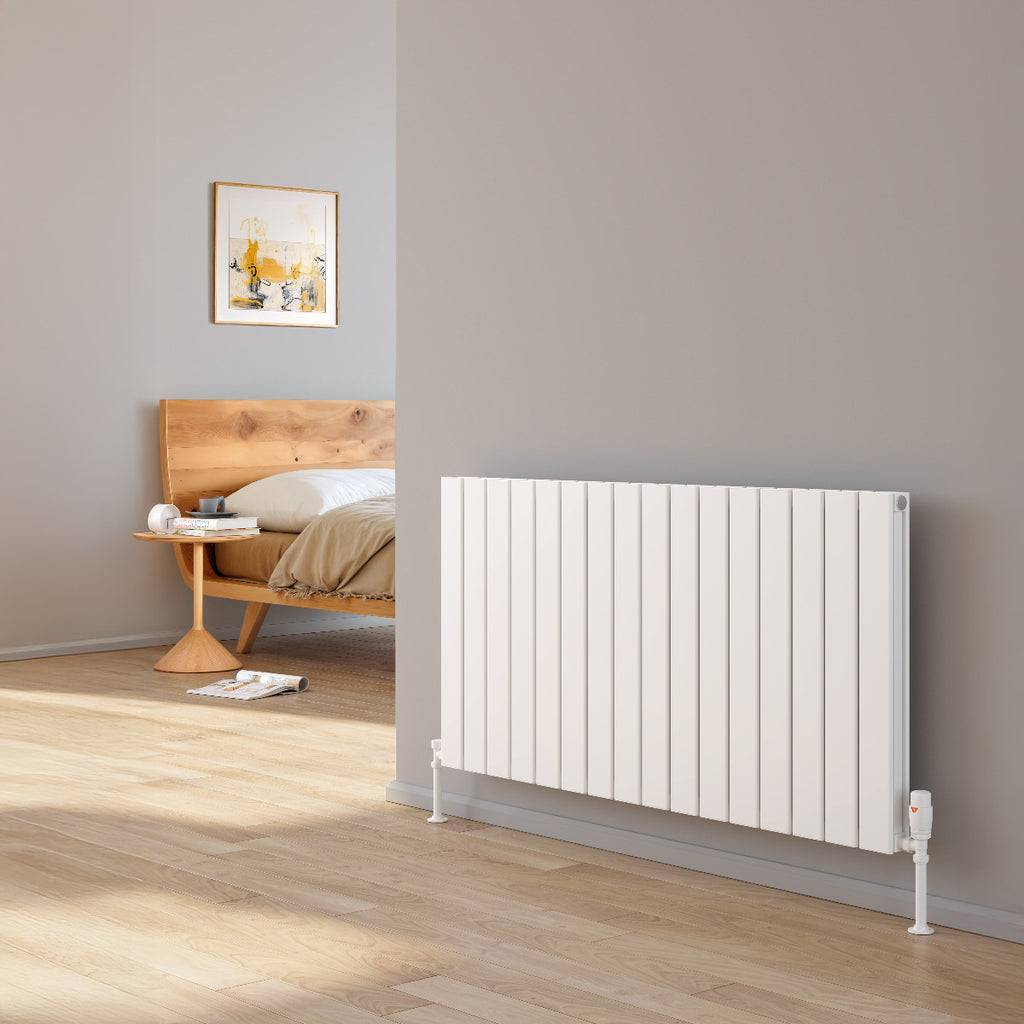

  • Reina Piatto Horizontal radiator room setting

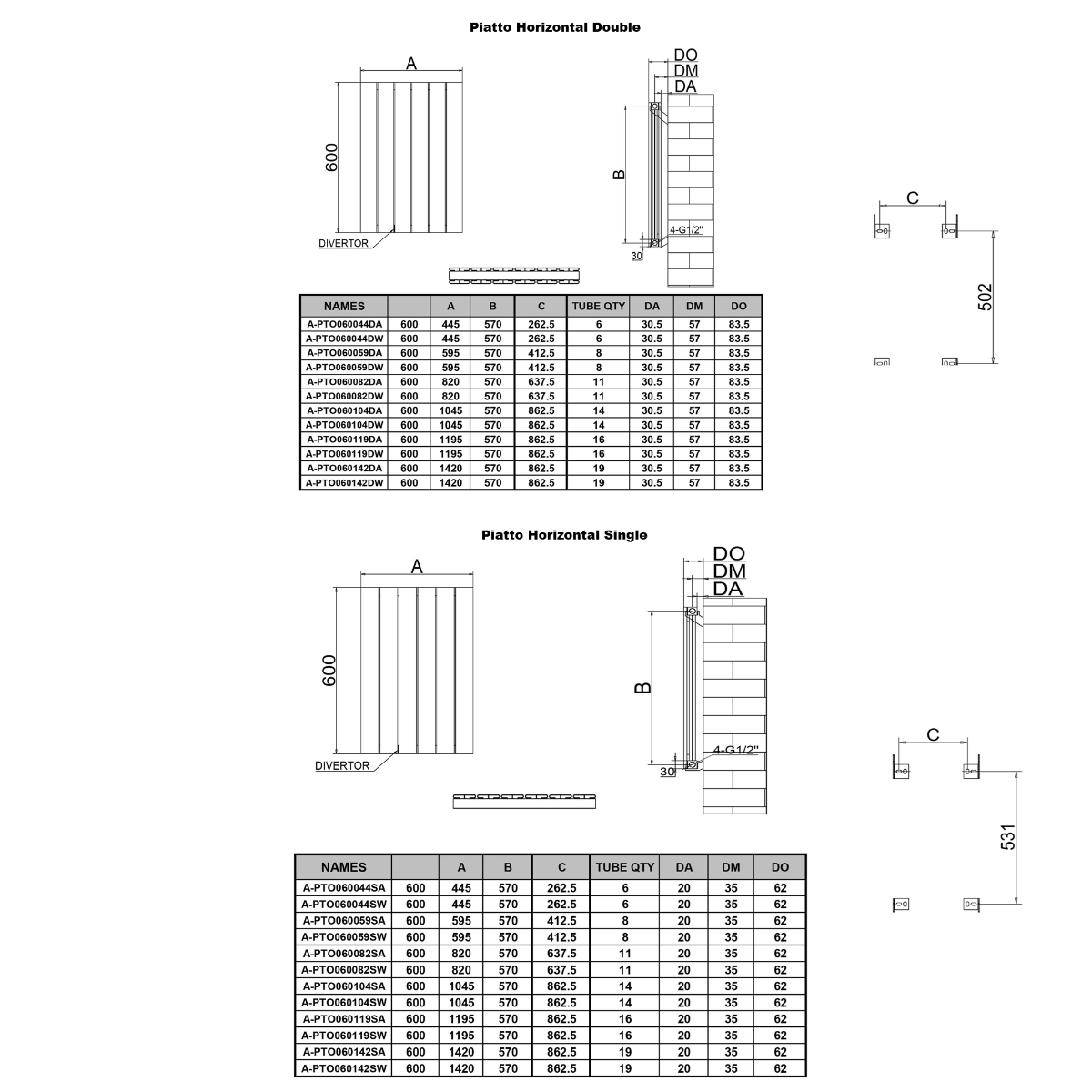

  • Reina Piatto Horizontal technical drawing
Reina Piatto Horizontal

Reina Piatto Horizontal

£159.36 inc. VAT £257.04
Type
Size
Finish
Complete your radiator Valves aren’t included with radiators. We’ve matched these to your finish.
Where do your pipes come from?

✓Free UK delivery on radiators ✓5-year guarantee ✓14-day returns

Not sure what output you need? Use our BTU calculator →

Description

The Reina Piatto Horizontal is part of Reina's aluminium radiator range, available in 6 sizes and 2 finishes. Choose your size and finish above to see the heat output and dimensions.

Key features

  • Aluminium construction
  • Available in White and Anthracite
  • Heat output from 337W to 1525W (ΔT50)
  • Suitable for central heating, electric, dual fuel
  • Wall brackets and fixings included
  • 5-year manufacturer's guarantee
Specification

White – 600 x 445mm

  • Size: 600 x 445mm (H x W)
  • Pipe centres: 445mm
  • Wall to pipe centres: 35mm
  • Wall distance: 62mm
  • Heat output: 337W / 1148 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-PTO060044SW

Anthracite – 600 x 445mm

  • Size: 600 x 445mm (H x W)
  • Pipe centres: 445mm
  • Wall to pipe centres: 35mm
  • Wall distance: 62mm
  • Heat output: 337W / 1148 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-PTO060044SA

White – 600 x 595mm

  • Size: 600 x 595mm (H x W)
  • Pipe centres: 595mm
  • Wall to pipe centres: 35mm
  • Wall distance: 62mm
  • Heat output: 449W / 1531 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-PTO060059SW

Anthracite – 600 x 595mm

  • Size: 600 x 595mm (H x W)
  • Pipe centres: 595mm
  • Wall to pipe centres: 35mm
  • Wall distance: 62mm
  • Heat output: 449W / 1531 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-PTO060059SA

White – 600 x 820mm

  • Size: 600 x 820mm (H x W)
  • Pipe centres: 820mm
  • Wall to pipe centres: 35mm
  • Wall distance: 62mm
  • Heat output: 617W / 2105 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-PTO060082SW

Anthracite – 600 x 820mm

  • Size: 600 x 820mm (H x W)
  • Pipe centres: 820mm
  • Wall to pipe centres: 35mm
  • Wall distance: 62mm
  • Heat output: 617W / 2105 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-PTO060082SA

White – 600 x 1045mm

  • Size: 600 x 1045mm (H x W)
  • Pipe centres: 1045mm
  • Wall to pipe centres: 35mm
  • Wall distance: 62mm
  • Heat output: 786W / 2680 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-PTO060104SW

Anthracite – 600 x 1045mm

  • Size: 600 x 1045mm (H x W)
  • Pipe centres: 1045mm
  • Wall to pipe centres: 35mm
  • Wall distance: 62mm
  • Heat output: 786W / 2680 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-PTO060104SA

White – 600 x 1420mm

  • Size: 600 x 1420mm (H x W)
  • Pipe centres: 1420mm
  • Wall to pipe centres: 35mm
  • Wall distance: 62mm
  • Heat output: 1066W / 3636 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-PTO060142SW

Anthracite – 600 x 1420mm

  • Size: 600 x 1420mm (H x W)
  • Pipe centres: 1420mm
  • Wall to pipe centres: 35mm
  • Wall distance: 62mm
  • Heat output: 1066W / 3636 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-PTO060142SA

Anthracite – 600 x 820mm

  • Size: 600 x 820mm (H x W)
  • Pipe centres: 820mm
  • Wall to pipe centres: 57mm
  • Wall distance: 83mm
  • Heat output: 883W / 3010 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-PTO060082DA

White – 600 x 820mm

  • Size: 600 x 820mm (H x W)
  • Pipe centres: 820mm
  • Wall to pipe centres: 57mm
  • Wall distance: 83mm
  • Heat output: 883W / 3010 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-PTO060082DW

Anthracite – 600 x 1420mm

  • Size: 600 x 1420mm (H x W)
  • Pipe centres: 1420mm
  • Wall to pipe centres: 57mm
  • Wall distance: 83mm
  • Heat output: 1525W / 5199 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-PTO060142DA

White – 600 x 1420mm

  • Size: 600 x 1420mm (H x W)
  • Pipe centres: 1420mm
  • Wall to pipe centres: 57mm
  • Wall distance: 83mm
  • Heat output: 1525W / 5199 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-PTO060142DW

Anthracite – 600 x 445mm

  • Size: 600 x 445mm (H x W)
  • Pipe centres: 445mm
  • Wall to pipe centres: 57mm
  • Wall distance: 83mm
  • Heat output: 482W / 1642 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-PTO060044DA

White – 600 x 445mm

  • Size: 600 x 445mm (H x W)
  • Pipe centres: 445mm
  • Wall to pipe centres: 57mm
  • Wall distance: 83mm
  • Heat output: 482W / 1642 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-PTO060044DW

Anthracite – 600 x 595mm

  • Size: 600 x 595mm (H x W)
  • Pipe centres: 595mm
  • Wall to pipe centres: 57mm
  • Wall distance: 83mm
  • Heat output: 642W / 2189 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-PTO060059DA

White – 600 x 595mm

  • Size: 600 x 595mm (H x W)
  • Pipe centres: 595mm
  • Wall to pipe centres: 57mm
  • Wall distance: 83mm
  • Heat output: 642W / 2189 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-PTO060059DW

Anthracite – 600 x 1045mm

  • Size: 600 x 1045mm (H x W)
  • Pipe centres: 1045mm
  • Wall to pipe centres: 57mm
  • Wall distance: 83mm
  • Heat output: 1124W / 3831 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-PTO060104DA

White – 600 x 1045mm

  • Size: 600 x 1045mm (H x W)
  • Pipe centres: 1045mm
  • Wall to pipe centres: 57mm
  • Wall distance: 83mm
  • Heat output: 1124W / 3831 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-PTO060104DW

Anthracite – 600 x 1195mm

  • Size: 600 x 1195mm (H x W)
  • Pipe centres: 1195mm
  • Wall to pipe centres: 35mm
  • Wall distance: 62mm
  • Heat output: 898W / 3062 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-PTO060119SA

Anthracite – 600 x 1195mm

  • Size: 600 x 1195mm (H x W)
  • Pipe centres: 1195mm
  • Wall to pipe centres: 57mm
  • Wall distance: 83mm
  • Heat output: 1284W / 4378 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-PTO060119DA

White – 600 x 1195mm

  • Size: 600 x 1195mm (H x W)
  • Pipe centres: 1195mm
  • Wall to pipe centres: 35mm
  • Wall distance: 62mm
  • Heat output: 898W / 3062 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-PTO060119SW

White – 600 x 1195mm

  • Size: 600 x 1195mm (H x W)
  • Pipe centres: 1195mm
  • Wall to pipe centres: 57mm
  • Wall distance: 83mm
  • Heat output: 1284W / 4378 BTU (ΔT50)
  • Fuel type: Central heating, Electric, Dual fuel
  • Product code: A-PTO060119DW

For pipe centres including valves, add approximately 90mm.
What’s included & guarantee

In the box

  • Reina Piatto Horizontal radiator
  • Wall brackets and fixings

Valves are sold separately.

Guarantee

5-year manufacturer's guarantee against manufacturing defects.
Downloads

Installation guide (PDF)

Technical drawing
