Reina Piatto Vertical Single 1800x295 White

Reina Piatto Vertical

Single / 1800 x 295mm / White
£257.80 inc. VAT £415.80
Skip to product information
Reina Piatto Vertical Single 1800x295 White

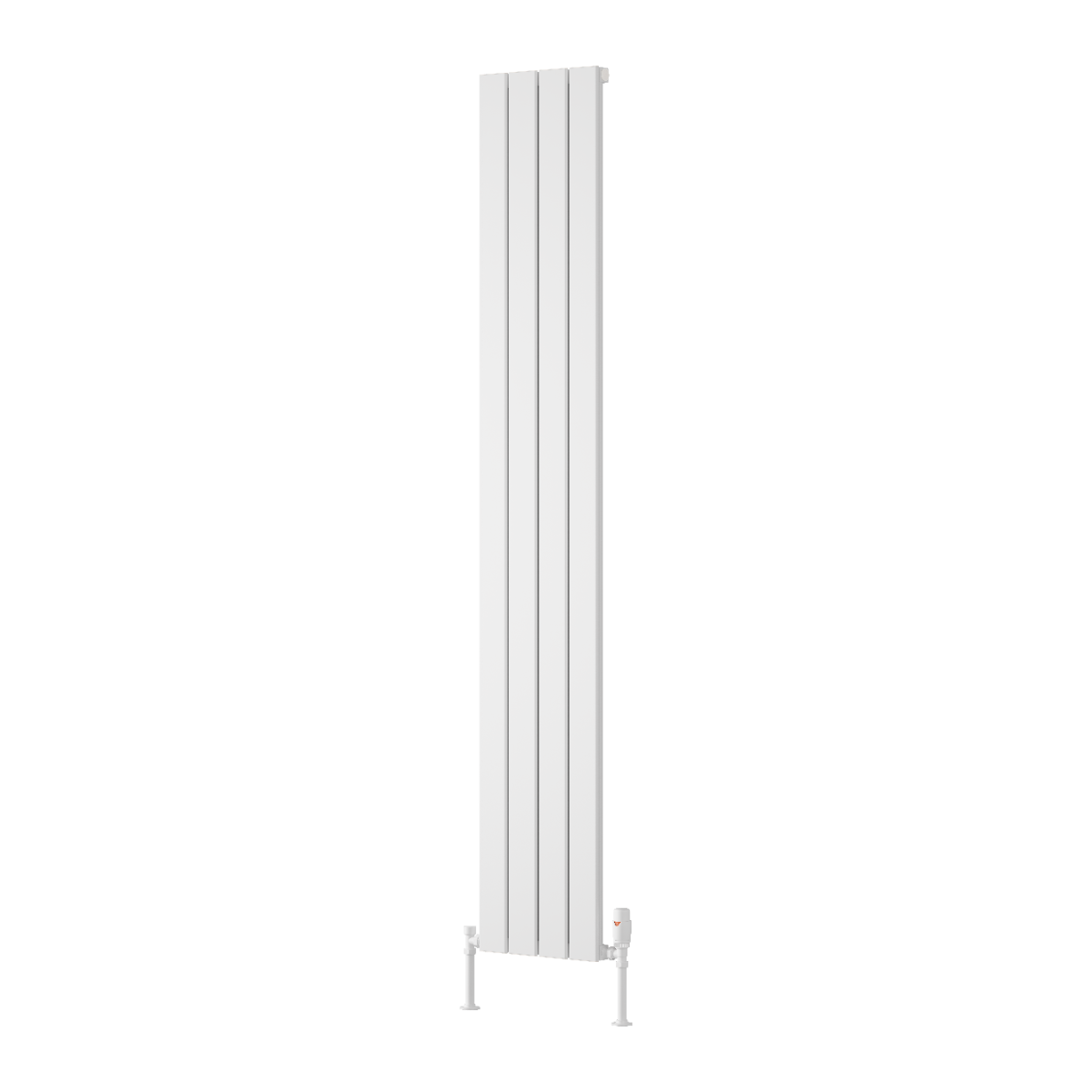

  • Reina Piatto Vertical Single 1800x295 White

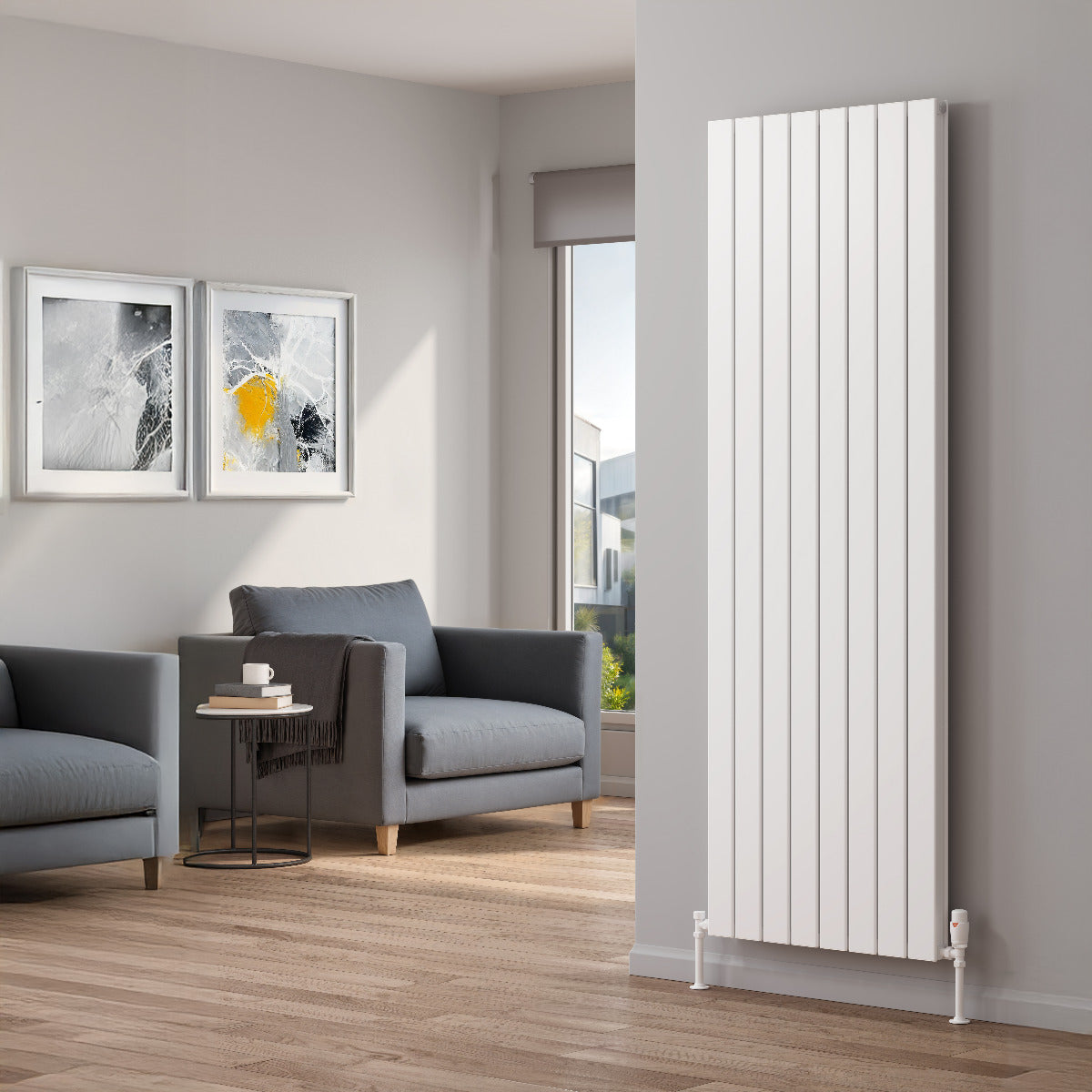

  • Reina Piatto Vertical radiator room setting

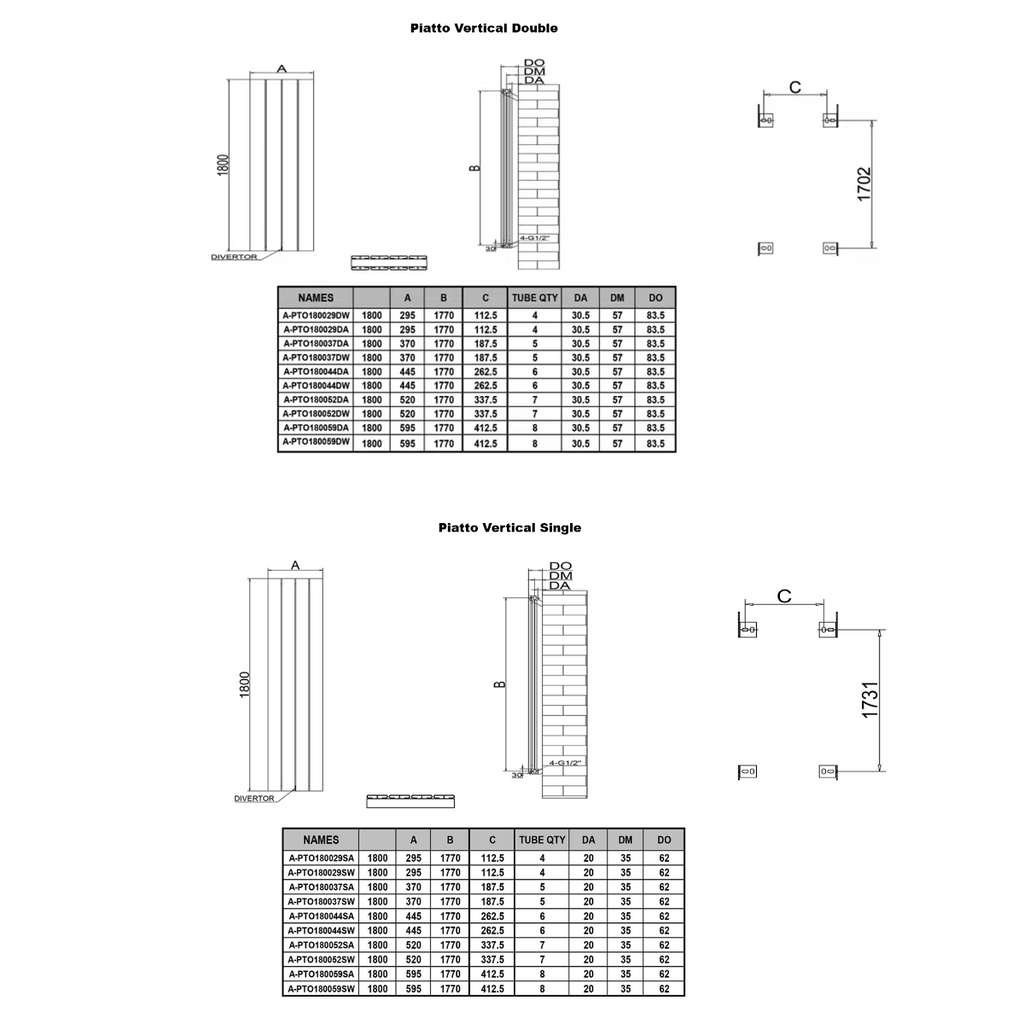

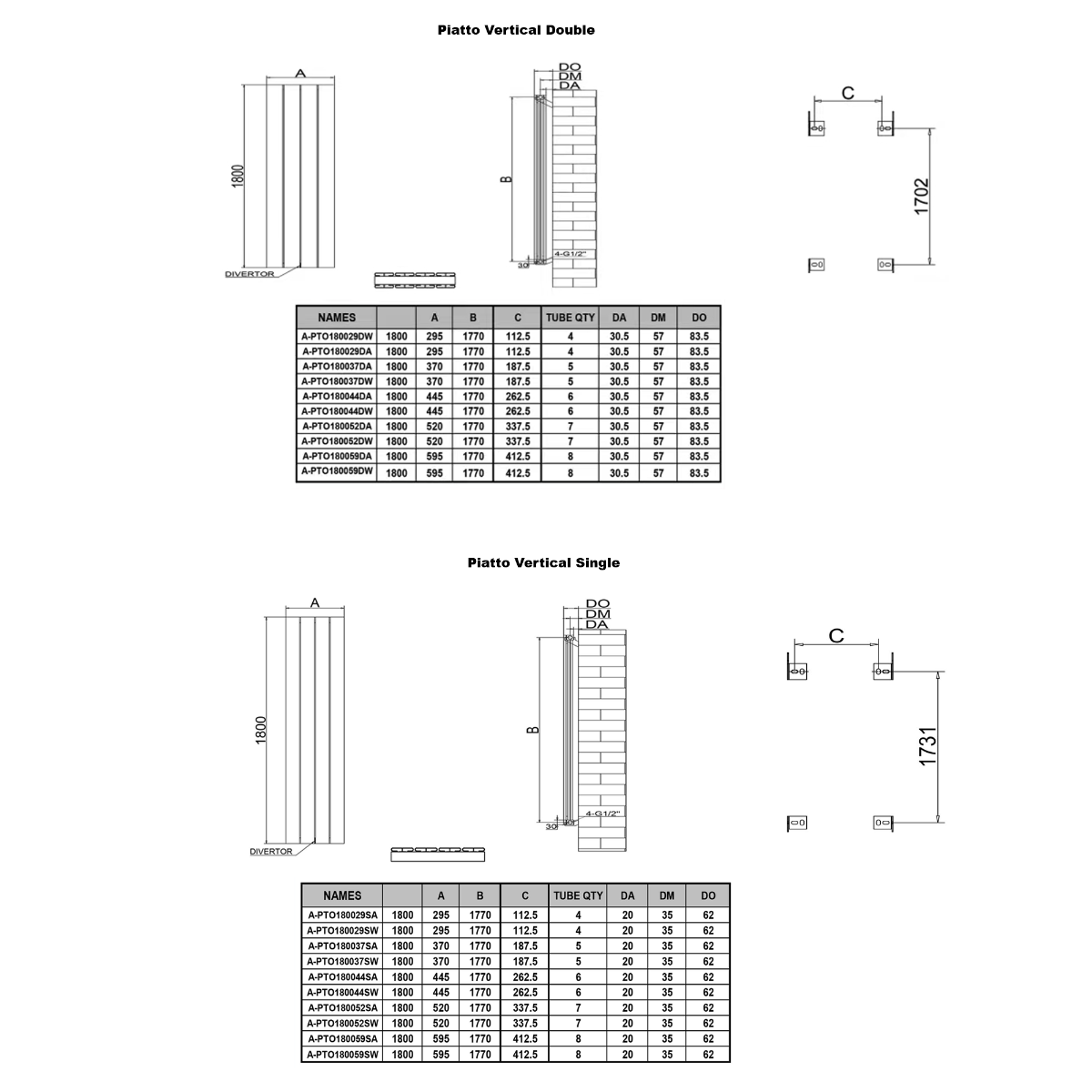

  • Reina Piatto Vertical technical drawing
Reina Piatto Vertical

Reina Piatto Vertical

£257.80 inc. VAT £415.80
Type
Size
Finish
Complete your radiator Valves aren’t included with radiators. We’ve matched these to your finish.
Where do your pipes come from?

✓Free UK delivery on radiators ✓5-year guarantee ✓14-day returns

Not sure what output you need? Use our BTU calculator →

Description

The Reina Piatto Vertical is part of Reina's aluminium radiator range, available in 5 sizes and 2 finishes. Choose your size and finish above to see the heat output and dimensions.

Key features

  • Aluminium construction
  • Available in White and Anthracite
  • Heat output from 673W to 1871W (ΔT50)
  • Suitable for central heating
  • Wall brackets and fixings included
  • 5-year manufacturer's guarantee
Specification

White – 1800 x 295mm

  • Size: 1800 x 295mm (H x W)
  • Pipe centres: 295mm
  • Wall to pipe centres: 35mm
  • Wall distance: 62mm
  • Heat output: 673W / 2295 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: A-PTO180029SW

Anthracite – 1800 x 295mm

  • Size: 1800 x 295mm (H x W)
  • Pipe centres: 295mm
  • Wall to pipe centres: 35mm
  • Wall distance: 62mm
  • Heat output: 673W / 2295 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: A-PTO180029SA

White – 1800 x 370mm

  • Size: 1800 x 370mm (H x W)
  • Pipe centres: 370mm
  • Wall to pipe centres: 35mm
  • Wall distance: 62mm
  • Heat output: 841W / 2868 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: A-PTO180037SW

Anthracite – 1800 x 370mm

  • Size: 1800 x 370mm (H x W)
  • Pipe centres: 370mm
  • Wall to pipe centres: 35mm
  • Wall distance: 62mm
  • Heat output: 841W / 2868 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: A-PTO180037SA

White – 1800 x 445mm

  • Size: 1800 x 445mm (H x W)
  • Pipe centres: 445mm
  • Wall to pipe centres: 35mm
  • Wall distance: 62mm
  • Heat output: 1009W / 3442 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: A-PTO180044SW

Anthracite – 1800 x 445mm

  • Size: 1800 x 445mm (H x W)
  • Pipe centres: 445mm
  • Wall to pipe centres: 35mm
  • Wall distance: 62mm
  • Heat output: 1009W / 3442 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: A-PTO180044SA

White – 1800 x 520mm

  • Size: 1800 x 520mm (H x W)
  • Pipe centres: 520mm
  • Wall to pipe centres: 35mm
  • Wall distance: 62mm
  • Heat output: 1178W / 4016 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: A-PTO180052SW

Anthracite – 1800 x 520mm

  • Size: 1800 x 520mm (H x W)
  • Pipe centres: 520mm
  • Wall to pipe centres: 35mm
  • Wall distance: 62mm
  • Heat output: 1178W / 4016 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: A-PTO180052SA

White – 1800 x 595mm

  • Size: 1800 x 595mm (H x W)
  • Pipe centres: 595mm
  • Wall to pipe centres: 35mm
  • Wall distance: 62mm
  • Heat output: 1346W / 4589 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: A-PTO180059SW

Anthracite – 1800 x 595mm

  • Size: 1800 x 595mm (H x W)
  • Pipe centres: 595mm
  • Wall to pipe centres: 35mm
  • Wall distance: 62mm
  • Heat output: 1346W / 4589 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: A-PTO180059SA

Anthracite – 1800 x 370mm

  • Size: 1800 x 370mm (H x W)
  • Pipe centres: 370mm
  • Wall to pipe centres: 57mm
  • Wall distance: 83mm
  • Heat output: 1169W / 3987 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: A-PTO180037DA

White – 1800 x 370mm

  • Size: 1800 x 370mm (H x W)
  • Pipe centres: 370mm
  • Wall to pipe centres: 35mm
  • Wall distance: 62mm
  • Heat output: 1169W / 3987 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: A-PTO180037DW

Anthracite – 1800 x 295mm

  • Size: 1800 x 295mm (H x W)
  • Pipe centres: 295mm
  • Wall to pipe centres: 57mm
  • Wall distance: 83mm
  • Heat output: 935W / 3190 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: A-PTO180029DA

White – 1800 x 295mm

  • Size: 1800 x 295mm (H x W)
  • Pipe centres: 295mm
  • Wall to pipe centres: 35mm
  • Wall distance: 62mm
  • Heat output: 935W / 3190 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: A-PTO180029DW

Anthracite – 1800 x 445mm

  • Size: 1800 x 445mm (H x W)
  • Pipe centres: 445mm
  • Wall to pipe centres: 57mm
  • Wall distance: 83mm
  • Heat output: 1403W / 4784 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: A-PTO180044DA

White – 1800 x 445mm

  • Size: 1800 x 445mm (H x W)
  • Pipe centres: 445mm
  • Wall to pipe centres: 35mm
  • Wall distance: 62mm
  • Heat output: 1403W / 4784 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: A-PTO180044DW

Anthracite – 1800 x 520mm

  • Size: 1800 x 520mm (H x W)
  • Pipe centres: 520mm
  • Wall to pipe centres: 57mm
  • Wall distance: 83mm
  • Heat output: 1637W / 5581 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: A-PTO180052DA

White – 1800 x 520mm

  • Size: 1800 x 520mm (H x W)
  • Pipe centres: 520mm
  • Wall to pipe centres: 35mm
  • Wall distance: 62mm
  • Heat output: 1637W / 5581 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: A-PTO180052DW

Anthracite – 1800 x 595mm

  • Size: 1800 x 595mm (H x W)
  • Pipe centres: 595mm
  • Wall to pipe centres: 57mm
  • Wall distance: 83mm
  • Heat output: 1871W / 6379 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: A-PTO180059DA

White – 1800 x 595mm

  • Size: 1800 x 595mm (H x W)
  • Pipe centres: 595mm
  • Wall to pipe centres: 35mm
  • Wall distance: 62mm
  • Heat output: 1871W / 6379 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: A-PTO180059DW

For pipe centres including valves, add approximately 90mm.
What’s included & guarantee

In the box

  • Reina Piatto Vertical radiator
  • Wall brackets and fixings

Valves are sold separately.

Guarantee

5-year manufacturer's guarantee against manufacturing defects.
Downloads

Installation guide (PDF)

Technical drawing
Delivery & Returns

Delivery: Free UK delivery on radiators and towel rails, usually within 1–3 working days. Valves and accessories are free with a radiator, or £6 delivery when ordered on their own. Radiators come by two-person courier (usually DPD), who will call or text you to arrange delivery, so please give a mobile number you'll answer.

Returns: Change your mind within 14 days of delivery. Items must be unused and in their original packaging. We arrange collection by courier, and a collection charge is deducted from your refund: £42 for the first radiator, £6 for each additional radiator and £12 for valves and accessories. Custom RAL colours and made-to-order items can’t be returned unless faulty.

Damaged or faulty items are put right at no cost to you. Read our full delivery and returns policy.
