Reina Slimline Horizontal 600x400 White

Reina Slimline Horizontal

600 x 400mm / White
£187.49 inc. VAT £302.40
Skip to product information
Reina Slimline Horizontal 600x400 White

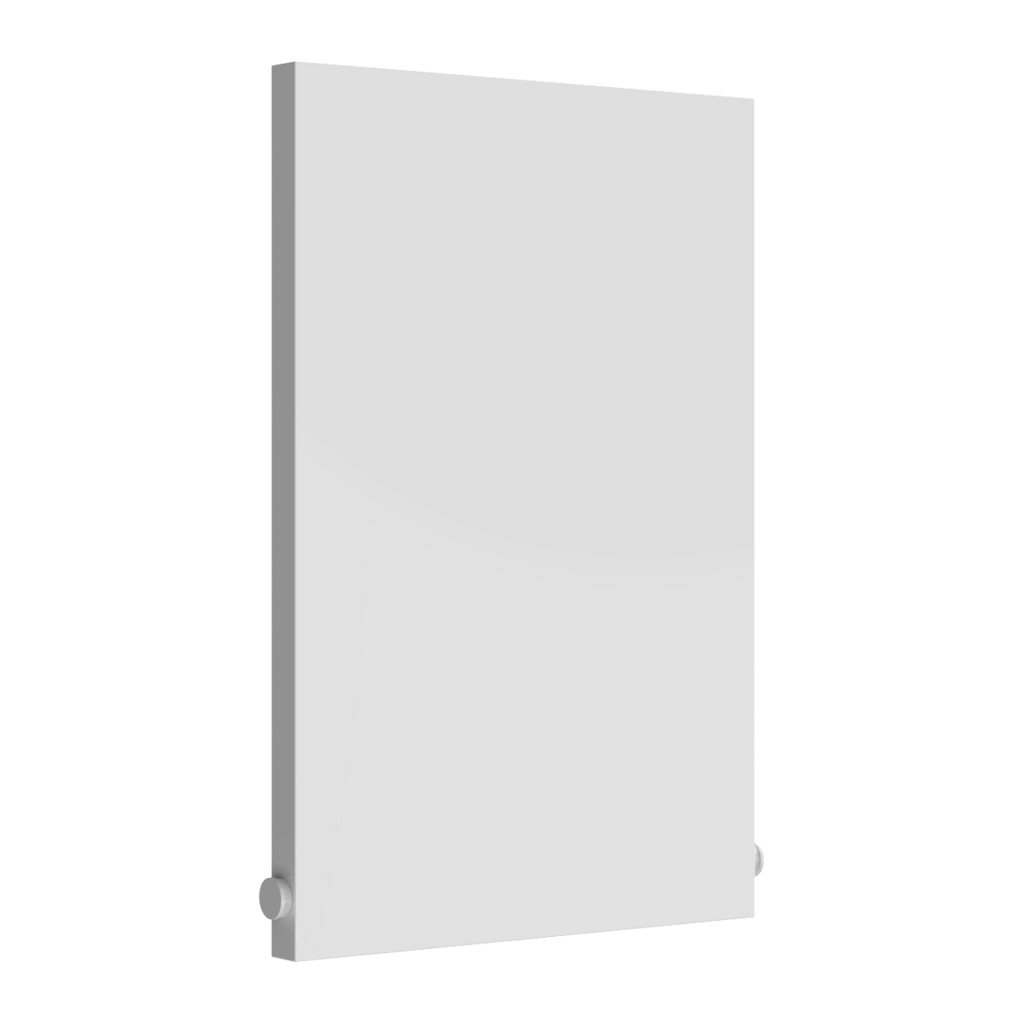

  • Reina Slimline Horizontal 600x400 White

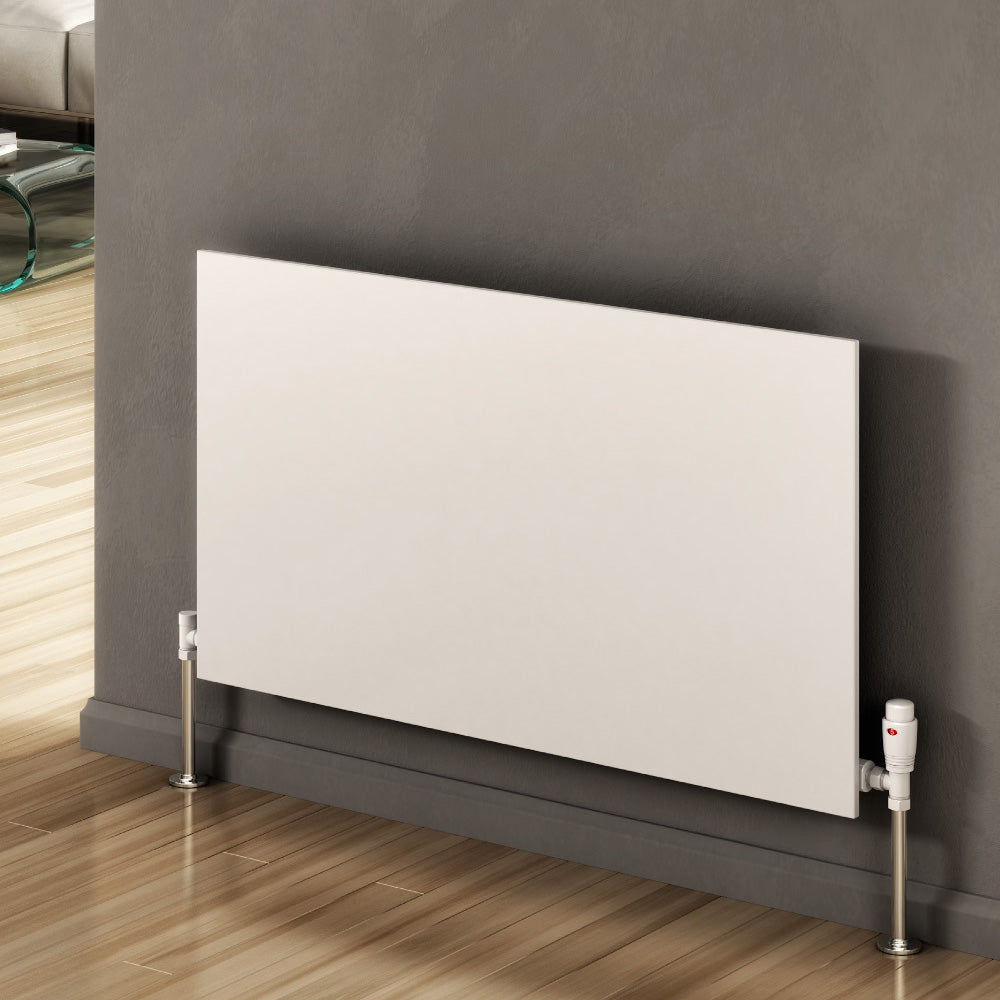

  • Reina Slimline Horizontal radiator room setting

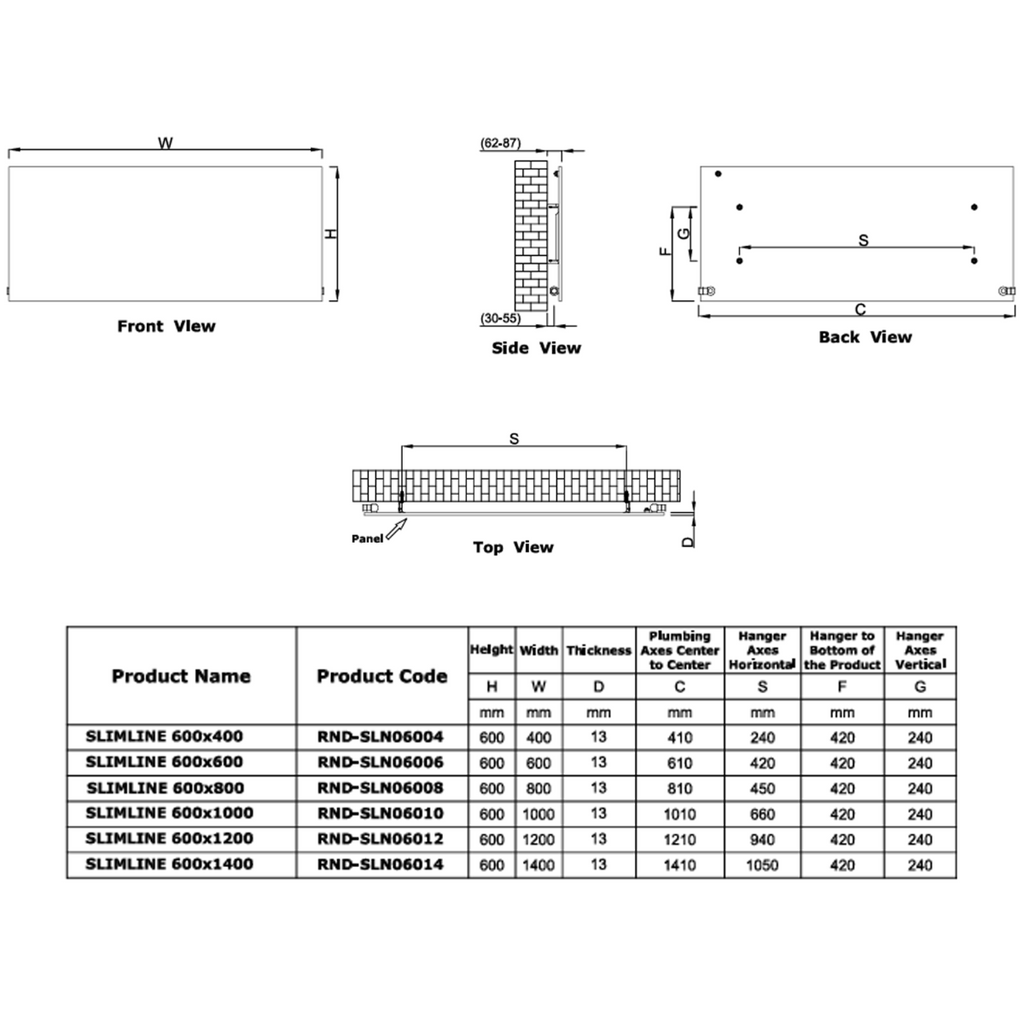

  • Reina Slimline Horizontal technical drawing
Reina Slimline Horizontal

Reina Slimline Horizontal

£187.49 inc. VAT £302.40
Size
Finish
Complete your radiator Valves aren’t included with radiators. We’ve matched these to your finish.
Where do your pipes come from?

✓Free UK delivery on radiators ✓5-year guarantee ✓14-day returns

Not sure what output you need? Use our BTU calculator →

Description

The Reina Slimline Horizontal is part of Reina's mild steel radiator range, available in 6 sizes and 2 finishes. Choose your size and finish above to see the heat output and dimensions.

Key features

  • Mild steel construction
  • Available in White and Anthracite
  • Heat output from 313W to 1097W (ΔT50)
  • Suitable for central heating
  • Wall brackets and fixings included
  • 5-year manufacturer's guarantee
Specification

White – 600 x 400mm

  • Size: 600 x 400mm (H x W)
  • Pipe centres: 400mm
  • Wall to pipe centres: 30-55mm
  • Wall distance: 62-87mm
  • Heat output: 313W / 1068 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: RND-SLN06004W

Anthracite – 600 x 400mm

  • Size: 600 x 400mm (H x W)
  • Pipe centres: 400mm
  • Wall to pipe centres: 30-55mm
  • Wall distance: 62-87mm
  • Heat output: 313W / 1068 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: RND-SLN06004A

White – 600 x 600mm

  • Size: 600 x 600mm (H x W)
  • Pipe centres: 600mm
  • Wall to pipe centres: 30-55mm
  • Wall distance: 62-87mm
  • Heat output: 471W / 1605 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: RND-SLN06006W

Anthracite – 600 x 600mm

  • Size: 600 x 600mm (H x W)
  • Pipe centres: 600mm
  • Wall to pipe centres: 30-55mm
  • Wall distance: 62-87mm
  • Heat output: 471W / 1605 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: RND-SLN06006A

White – 600 x 800mm

  • Size: 600 x 800mm (H x W)
  • Pipe centres: 800mm
  • Wall to pipe centres: 30-55mm
  • Wall distance: 62-87mm
  • Heat output: 627W / 2137 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: RND-SLN06008W

Anthracite – 600 x 800mm

  • Size: 600 x 800mm (H x W)
  • Pipe centres: 800mm
  • Wall to pipe centres: 30-55mm
  • Wall distance: 62-87mm
  • Heat output: 627W / 2137 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: RND-SLN06008A

White – 600 x 1000mm

  • Size: 600 x 1000mm (H x W)
  • Pipe centres: 1000mm
  • Wall to pipe centres: 30-55mm
  • Wall distance: 62-87mm
  • Heat output: 784W / 2673 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: RND-SLN06010W

Anthracite – 600 x 1000mm

  • Size: 600 x 1000mm (H x W)
  • Pipe centres: 1000mm
  • Wall to pipe centres: 30-55mm
  • Wall distance: 62-87mm
  • Heat output: 784W / 2673 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: RND-SLN06010A

White – 600 x 1200mm

  • Size: 600 x 1200mm (H x W)
  • Pipe centres: 1200mm
  • Wall to pipe centres: 30-55mm
  • Wall distance: 62-87mm
  • Heat output: 940W / 3205 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: RND-SLN06012W

Anthracite – 600 x 1200mm

  • Size: 600 x 1200mm (H x W)
  • Pipe centres: 1200mm
  • Wall to pipe centres: 30-55mm
  • Wall distance: 62-87mm
  • Heat output: 940W / 3205 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: RND-SLN06012A

White – 600 x 1400mm

  • Size: 600 x 1400mm (H x W)
  • Pipe centres: 1400mm
  • Wall to pipe centres: 30-55mm
  • Wall distance: 62-87mm
  • Heat output: 1097W / 3741 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: RND-SLN06014W

Anthracite – 600 x 1400mm

  • Size: 600 x 1400mm (H x W)
  • Pipe centres: 1400mm
  • Wall to pipe centres: 30-55mm
  • Wall distance: 62-87mm
  • Heat output: 1097W / 3741 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: RND-SLN06014A

For pipe centres including valves, add approximately 90mm.
What’s included & guarantee

In the box

  • Reina Slimline Horizontal radiator
  • Wall brackets and fixings

Valves are sold separately.

Guarantee

5-year manufacturer's guarantee against manufacturing defects.
Downloads

Installation guide (PDF)

Technical drawing
Delivery & Returns

Delivery: Free UK delivery on radiators and towel rails, usually within 1–3 working days. Valves and accessories are free with a radiator, or £6 delivery when ordered on their own. Radiators come by two-person courier (usually DPD), who will call or text you to arrange delivery, so please give a mobile number you'll answer.

Returns: Change your mind within 14 days of delivery. Items must be unused and in their original packaging. We arrange collection by courier, and a collection charge is deducted from your refund: £42 for the first radiator, £6 for each additional radiator and £12 for valves and accessories. Custom RAL colours and made-to-order items can’t be returned unless faulty.

Damaged or faulty items are put right at no cost to you. Read our full delivery and returns policy.
