Reina Slimline Vertical 470x300 White

Reina Slimline Vertical

470 x 300mm / White
£171.86 inc. VAT £277.20
Skip to product information
Reina Slimline Vertical 470x300 White

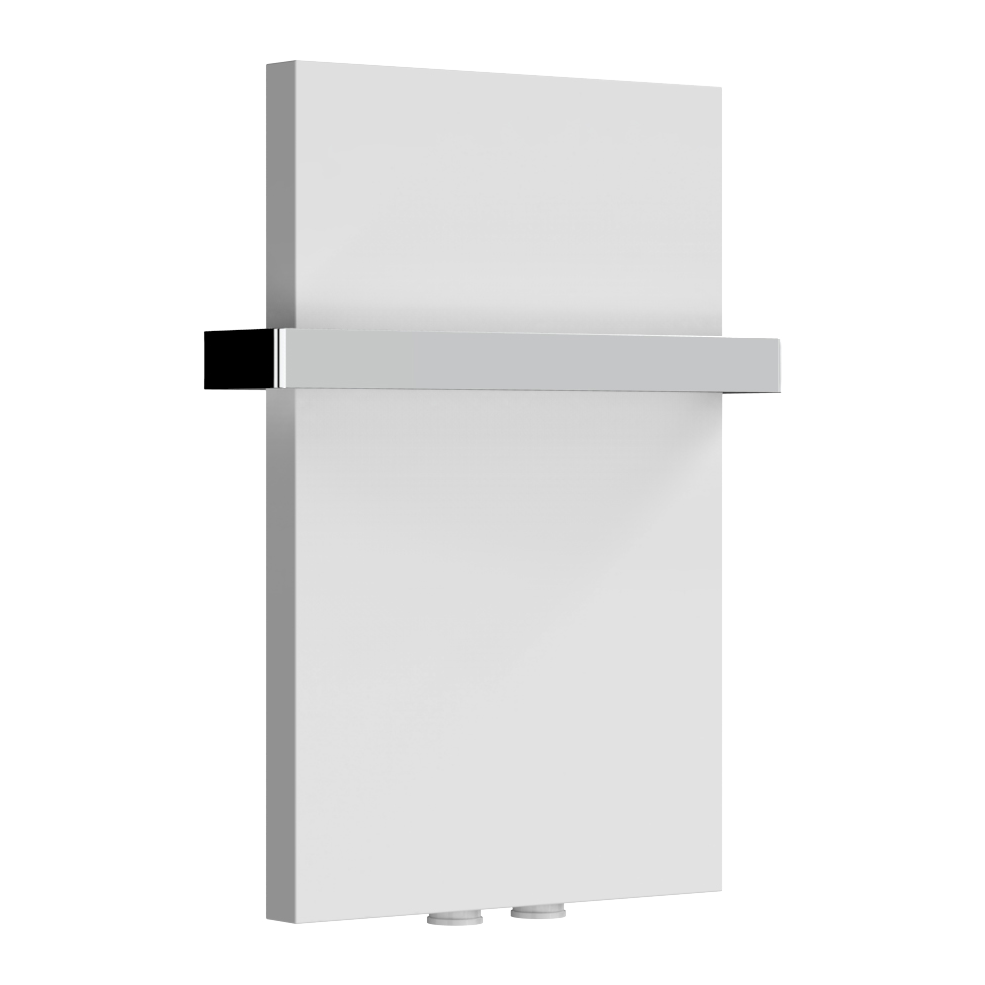

  • Reina Slimline Vertical 470x300 White

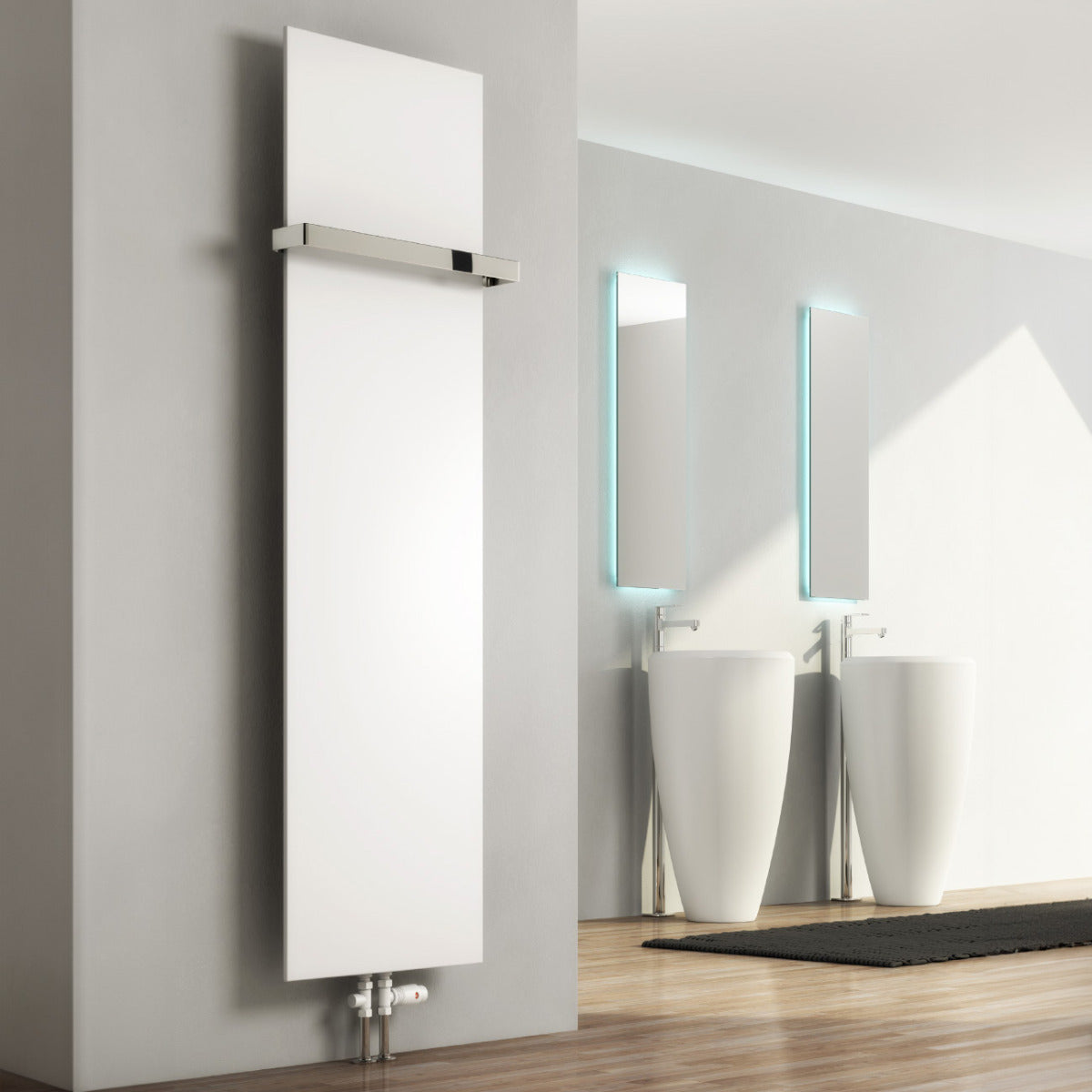

  • Reina Slimline Vertical radiator room setting

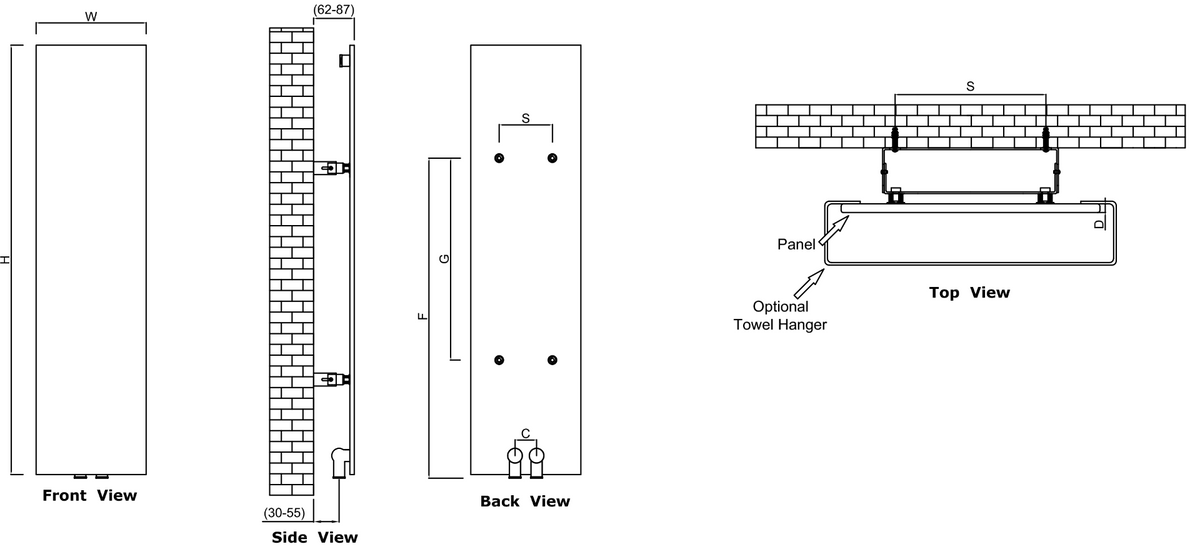

  • Reina Slimline Vertical technical drawing
Reina Slimline Vertical

Reina Slimline Vertical

£171.86 inc. VAT £277.20
Size
Finish
Complete your radiator Valves aren’t included with radiators. We’ve matched these to your finish.
Where do your pipes come from?

✓Free UK delivery on radiators ✓5-year guarantee ✓14-day returns

Not sure what output you need? Use our BTU calculator →

Description

The Reina Slimline Vertical is part of Reina's mild steel radiator range, available in 11 sizes and 2 finishes. Choose your size and finish above to see the heat output and dimensions.

Key features

  • Mild steel construction
  • Available in White and Anthracite
  • Heat output from 184W to 1156W (ΔT50)
  • Suitable for central heating
  • Wall brackets and fixings included
  • 5-year manufacturer's guarantee
Specification

White – 470 x 300mm

  • Size: 470 x 300mm (H x W)
  • Pipe centres: 50mm
  • Wall to pipe centres: 30-55mm
  • Wall distance: 62-87mm
  • Heat output: 184W / 626 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: RND-SLN04703W

Anthracite – 470 x 300mm

  • Size: 470 x 300mm (H x W)
  • Pipe centres: 50mm
  • Wall to pipe centres: 30-55mm
  • Wall distance: 62-87mm
  • Heat output: 184W / 626 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: RND-SLN04703A

White – 770 x 300mm

  • Size: 770 x 300mm (H x W)
  • Pipe centres: 50mm
  • Wall to pipe centres: 30-55mm
  • Wall distance: 62-87mm
  • Heat output: 302W / 1028 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: RND-SLN07703W

Anthracite – 770 x 300mm

  • Size: 770 x 300mm (H x W)
  • Pipe centres: 50mm
  • Wall to pipe centres: 30-55mm
  • Wall distance: 62-87mm
  • Heat output: 302W / 1028 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: RND-SLN07703A

White – 1170 x 300mm

  • Size: 1170 x 300mm (H x W)
  • Pipe centres: 50mm
  • Wall to pipe centres: 30-55mm
  • Wall distance: 62-87mm
  • Heat output: 458W / 1563 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: RND-SLN11703W

Anthracite – 1170 x 300mm

  • Size: 1170 x 300mm (H x W)
  • Pipe centres: 50mm
  • Wall to pipe centres: 30-55mm
  • Wall distance: 62-87mm
  • Heat output: 458W / 1563 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: RND-SLN11703A

White – 1170 x 400mm

  • Size: 1170 x 400mm (H x W)
  • Pipe centres: 50mm
  • Wall to pipe centres: 30-55mm
  • Wall distance: 62-87mm
  • Heat output: 611W / 2084 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: RND-SLN11704W

Anthracite – 1170 x 400mm

  • Size: 1170 x 400mm (H x W)
  • Pipe centres: 50mm
  • Wall to pipe centres: 30-55mm
  • Wall distance: 62-87mm
  • Heat output: 611W / 2084 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: RND-SLN11704A

White – 1170 x 500mm

  • Size: 1170 x 500mm (H x W)
  • Pipe centres: 50mm
  • Wall to pipe centres: 30-55mm
  • Wall distance: 62-87mm
  • Heat output: 764W / 2604 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: RND-SLN11705W

Anthracite – 1170 x 500mm

  • Size: 1170 x 500mm (H x W)
  • Pipe centres: 50mm
  • Wall to pipe centres: 30-55mm
  • Wall distance: 62-87mm
  • Heat output: 764W / 2604 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: RND-SLN11705A

White – 1470 x 300mm

  • Size: 1470 x 300mm (H x W)
  • Pipe centres: 50mm
  • Wall to pipe centres: 30-55mm
  • Wall distance: 62-87mm
  • Heat output: 576W / 1966 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: RND-SLN14703W

Anthracite – 1470 x 300mm

  • Size: 1470 x 300mm (H x W)
  • Pipe centres: 50mm
  • Wall to pipe centres: 30-55mm
  • Wall distance: 62-87mm
  • Heat output: 576W / 1966 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: RND-SLN14703A

White – 1470 x 400mm

  • Size: 1470 x 400mm (H x W)
  • Pipe centres: 50mm
  • Wall to pipe centres: 30-55mm
  • Wall distance: 62-87mm
  • Heat output: 768W / 2619 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: RND-SLN14704W

Anthracite – 1470 x 400mm

  • Size: 1470 x 400mm (H x W)
  • Pipe centres: 50mm
  • Wall to pipe centres: 30-55mm
  • Wall distance: 62-87mm
  • Heat output: 768W / 2619 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: RND-SLN14704A

White – 1470 x 500mm

  • Size: 1470 x 500mm (H x W)
  • Pipe centres: 50mm
  • Wall to pipe centres: 30-55mm
  • Wall distance: 62-87mm
  • Heat output: 960W / 3274 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: RND-SLN14705W

Anthracite – 1470 x 500mm

  • Size: 1470 x 500mm (H x W)
  • Pipe centres: 50mm
  • Wall to pipe centres: 30-55mm
  • Wall distance: 62-87mm
  • Heat output: 960W / 3274 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: RND-SLN14705A

White – 1770 x 300mm

  • Size: 1770 x 300mm (H x W)
  • Pipe centres: 50mm
  • Wall to pipe centres: 30-55mm
  • Wall distance: 62-87mm
  • Heat output: 694W / 2366 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: RND-SLN17703W

Anthracite – 1770 x 300mm

  • Size: 1770 x 300mm (H x W)
  • Pipe centres: 50mm
  • Wall to pipe centres: 30-55mm
  • Wall distance: 62-87mm
  • Heat output: 694W / 2366 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: RND-SLN17703A

White – 1770 x 400mm

  • Size: 1770 x 400mm (H x W)
  • Pipe centres: 50mm
  • Wall to pipe centres: 30-55mm
  • Wall distance: 62-87mm
  • Heat output: 924W / 3152 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: RND-SLN17704W

Anthracite – 1770 x 400mm

  • Size: 1770 x 400mm (H x W)
  • Pipe centres: 50mm
  • Wall to pipe centres: 30-55mm
  • Wall distance: 62-87mm
  • Heat output: 924W / 3152 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: RND-SLN17704A

White – 1770 x 500mm

  • Size: 1770 x 500mm (H x W)
  • Pipe centres: 50mm
  • Wall to pipe centres: 30-55mm
  • Wall distance: 62-87mm
  • Heat output: 1156W / 3941 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: RND-SLN17705W

Anthracite – 1770 x 500mm

  • Size: 1770 x 500mm (H x W)
  • Pipe centres: 50mm
  • Wall to pipe centres: 30-55mm
  • Wall distance: 62-87mm
  • Heat output: 1156W / 3941 BTU (ΔT50)
  • Fuel type: Central heating
  • Product code: RND-SLN17705A

For pipe centres including valves, add approximately 90mm.
What’s included & guarantee

In the box

  • Reina Slimline Vertical radiator
  • Wall brackets and fixings

Valves are sold separately.

Guarantee

5-year manufacturer's guarantee against manufacturing defects.
Downloads

Installation guide (PDF)

Technical drawing
